Shop EATON

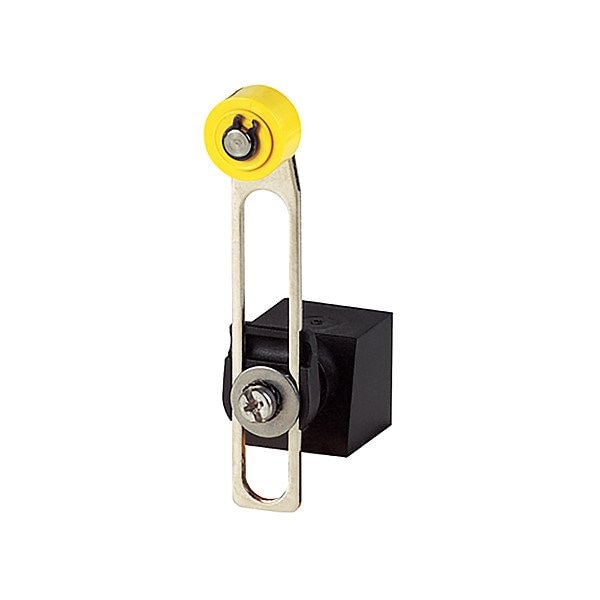

Limit Switch

  • Mfr # LSM-XRLA

  • Zoro # G323355815

product price:  $90.65
/ea

Key Features

Arm Adjustability
Adjustable
Operating Temperature - Minimum
-13 Degrees F
Action
Momentary
Overall Height
3.94 in
Operating Torque
8.88 in-lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LSM-XRLA
Zoro #
G323355815
UPC #
786685392462
Country of Origin
Germany

Dimensions

Overall Height
3.94 in
Arm Length - Maximum
1.75 in
Manufacturer Warranty Length
1 yr
Overall Depth
0.94 in
Roller Diameter
1.18 in
Roller Width
0.71 in
Overall Width
55 in
Actuator Length
1.75 in
Arm Length - Minimum
1.06 in

Details

Arm Adjustability
Adjustable
Operating Temperature - Minimum
-13 Degrees F
Action
Momentary
Operating Torque
8.88 in-lb
IP Rating
IP66, IP67
Arm Material
Metal
Plunger Adjustability
Adjustable
Series
LSM
Roller Adjustability
Adjustable
Includes Actuator
Actuator Included
Operating Temperature - Maximum
158 Degrees F
Actuator Style
Roller-Lever Arm
Item
Limit Switch Head
Compatible with Series
LS-Titan
Roller Material
Nylon
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Roller Position
Side
Standards
CE Certified, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
Features
Approved for Global Application, Operating Heads can be Rotated 90 Degrees, Positive Opening NC Contacts
Operating Force
8 N
Directional Movement
CCW/CW
Compatible with Brand
Eaton
Compatible Manufacturer Part Number
LSM-02-RLA, LSM-11S-RLA, LSM-20A-RLA
Compatible with Manufacturer Model Number
LSM-02-RLA, LSM-11S-RLA, LSM-20A-RLA

Description

Limit Switch Head, Actuator Style Roller-Lever Arm, Actuator Location Side, Actuator Length 1.75 in, Operating Force 8 N, IP Rating IP66, IP67, Standards CE Certified, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
