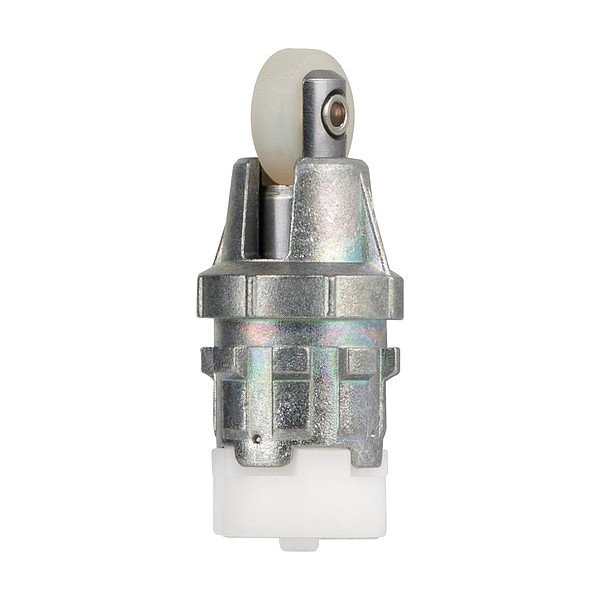

Limit Switch

Mfr # E49CP7
Zoro # G323353675

25.79

Key Features

IP Rating

IP65

Includes Actuator

Actuator Included

Operating Temperature - Maximum

176 Degrees F

Manufacturer Warranty Length

1 yr

Overall Height

1.34 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: E49CP7
Zoro #: G323353675
UPC #: 782113741987
Country of Origin: Germany

Dimensions

Manufacturer Warranty Length: 1 yr
Overall Height: 1.34 in
Arm Length - Minimum: 0.77 in
Actuator Length: 0.77 in
Overall Depth: 0.87 in
Roller Diameter: 0.35 in
Roller Width: 0.13 in
Arm Length - Maximum: 0.77 in
Overall Width: 0.78 in

Details

IP Rating: IP65
Includes Actuator: Actuator Included
Operating Temperature - Maximum: 176 Degrees F
Arm Adjustability: Fixed
Roller Material: Nylon
Plunger Adjustability: Fixed
Actuator Style: Roller-Plunger
Operating Force: 8 N
Arm Material: Metal
Roller Adjustability: Fixed
Series: E49
Item: Limit Switch Head
Features: High Mechanical Strength, Pre-Wired
Directional Movement: Linear
Operating Temperature - Minimum: -22 Degrees F
Operating Torque: 8.88 in-lb
NEMA Enclosure Rating: 1, 13, 3, 3S, 4, 4X, 6, 6P
Roller Position: Top
Action: Momentary
Standards: CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UKCA Certified, UL Listed

Description

Limit Switch Head, Actuator Style Roller-Plunger, Actuator Location Top, Actuator Length 0.77 in, Operating Force 8 N, IP Rating IP65, Standards CE Certified, CSA Certified, IEC Certified, RoHS Compliant, UKCA Certified, UL Listed
