Shop EATON

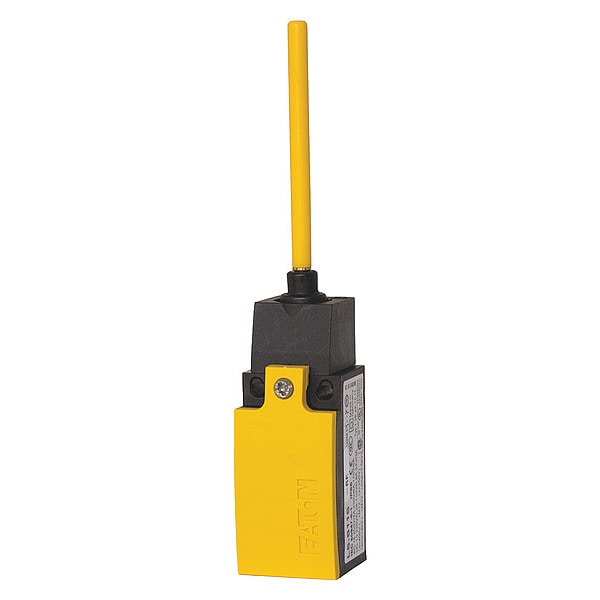

Limit Switch, Push Rod, 1NC/1NO, 6A at 250V AC, Actuator Location: Side

  • Mfr # LSM-11S-RR

  • Zoro # G6603667

product price:
$
179.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Push Rod
Actuator Style - Limit Switch
Push Rod
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
6A at 250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSM-11S-RR
Zoro #
G6603667
UPC #
786685392264
Country of Origin
Germany

Dimensions

Body Depth - Limit Switch
1.32 in
Body Height - Limit Switch
2.53 in
Depth
1.22"
Height
6.50"
Actuator Length
6.66"
Body Width - Limit Switch
1.22 in
Width
1.32"
Actuator Length - Limit Switch
6.66 in
Arm Width
0.23 in
Product Width
1.5 in
Product Height
1.5 in
Overall Height
1.5 in
Overall Depth
1.22 in
Overall Width
1.5 in
Arm Length - Maximum
6 in
Body Height
2.53 in
Body Width
1.22 in
Manufacturer Warranty Length
1 yr
Body Depth
1.32 in
Arm Length - Minimum
3 in
Mounting Hole Diameter
0.16 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Push Rod
Actuator Style - Limit Switch
Push Rod
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
6A at 250V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator - Limit Switch
No
Operating Temp. Range
-13 Degrees to 158 Degrees F
DC Contact Rating
3 A @ 24 V
Mounting Hole - Limit Switch
(2) 0.16 in dia
IP Rating
IP66, IP67
Basic Actuator Style (Limit Switch)
Push Rod
Actuator Location (Limit Switch)
Side
Mounting Hole Spacing - Limit Switch
0.87 in
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style (Limit Switch)
Push Rod
Electrical Connection
Cage Clamp
Actuator Location
Side
Limit Switch Style
General Purpose Limit Switch
Operating Force
1.77 in-lb
Voltage Rating
250VAC
Actuator Style
Rod
Wiring Entry
M20 Thread
NEMA Rating
3, 3S, 4X, 6P
Boot Sealed Actuator (Limit Switch)
No
Contact Form - Limit Switch
1NC/1NO
Standards
RoHS, UL Listed
Series
LS-Titan
Contact Form
1NO/1NC
Movement
Top
AC Contact Rating
6 A @ 240 V
Body Style (Limit Switch)
Miniature
Amps
6
Stem Thread - Limit Switch
No Stem
Differential Travel
65 Degrees
Connection Type
Cage clamps
Body Material
Zinc
Arm Material
Polymer
Certification
UL Listed
Weight
.5 lb
Enclosure Material
Die cast zinc
Type
LS-Titan
Maximum DC Current
3A
Maximum AC Current
6A
Environmental Rating
IP66, IP67
Product Name
Eaton LS-Titan miniature DIN limit switch
Contact Rating
6A at 240Vac, 3A at 24Vdc
Switch Type
Side rotary;Plastic rod lever
Operating Temperature - Max
158 °F
Contact Configuration
1 NO-1 NC, snap action, positive opening
Operating Temperature - Min
-13 °F
Total Travel
65 Degrees
Arm Adjustability
Adjustable
Lamp Type
No Lamp Module Included
Includes Actuator
Actuator Included
Boot Sealed Actuator
No Boot Included
Plunger Adjustability
Fixed
Mounting Hole Horizontal Center to Center Distance
22 mm
NEMA Enclosure Rating
3, 3S, 4X, 6P
Directional Movement
CCW/CW
Operating Torque - Maximum
1.77 in-lb
Number of Mounting Holes
2
Reset Travel
22 Degrees
Mounting Style
Surface
Mounting Hole Vertical Center to Center Distance
43 mm
Roller Position
Top
Operating Temperature - Minimum
-13 Degrees F
Action
Momentary/Momentary
Operating Force - Maximum
8 N
Operating Force - Minimum
1 N
Body Configuration
Plug-In
Operating Temperature - Maximum
158 Degrees F
Pretravel
43 Degrees

Description

Limit Switch, Actuator Style - Limit Switch Push Rod, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 6A @ 250V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 6.66 in, Body Height - Limit Switch 2.53 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.32 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 3, 3S, 4X, 6P, Mounting - Limit Switch Surface
