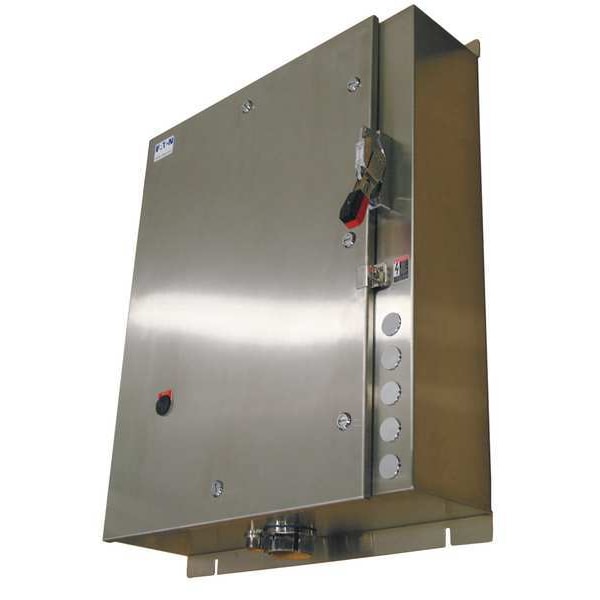

Eaton NEMA Fusible Str, Size 5,120V Coil, 4X Enc ECN1654AAL-R63/GL30 - main

NEMA Fusible Str, Size 5,120V Coil, 4X Enc

  • Mfr # ECN1654AAL-R63/GL30

  • Zoro # G2162478

product price: $23,426.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.

Key Features

NEMA Size
5
Amps AC
270
Max. Motor Voltage
600V AC
Coil Volts
110/120V AC
Fuse Clip Type
RK1-600V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ECN1654AAL-R63/GL30
Zoro #
G2162478
UPC #
-
Country of Origin
United States

Dimensions

NEMA Size
5

Details

Item
NEMA Combination Starter
Amps AC
270
Max. Motor Voltage
600V AC
Coil Volts
110/120V AC
Fuse Clip Type
RK1-600V AC
Enclosure NEMA Rating
4X
Auxiliary Contact Form
1NO
Short Circuit Protection
Fusible Disconnect
Overload Relay Amp Setting
60 to 300A
Operator
No
Trip Class
10/20/30
Pilot Light
No
Control Transformer
No
Standards
ABS, CSA, OSHPD, UL Listed
HP @ 3 Phase - 480V
200 hp
HP @ 3 Phase - 240V
100 hp
Hz
60
Number of Poles
3
Maximum Overload Relay Current Setting
300 A
Horsepower @ Single Phase - 120V AC
Not Rated
Includes Auxiliary Contacts
Yes
Resistance Properties
Impact Resistant, Tamper Resistant
Mounting Style
Through Panel
For Fuse Class
Class R
Frequency
50/60 Hz
Series
Freedom
Minimum Overload Relay Current Setting
60 A
Phase
Three
Includes Pilot Light
No
NEMA Enclosure Rating
4X
Overload Protection Type
Electronic
Horsepower @ Single Phase - 240V AC
Not Rated
Number of Terminals
3
Horsepower @ Three Phase - 600V AC
200 hp
Horsepower @ Three Phase - 240V AC
100 hp
Current AC
270 A
Maximum Voltage Rating
600V AC
IP Rating
IP20
Includes Control Transformer
No
Terminal Connection Type
Screw Terminals
Number of Auxillary Contacts
1
Starter Style
NEMA
Auxiliary Contact Module Capacity
4
Electrical Operating Durability
100,000
Coil Voltage
110/120V AC
Horsepower @ Three Phase - 480V AC
200 hp
Reversing Capability
Non-Reversing
Horsepower @ Three Phase - 208V AC
75 hp
Mounting Postion
Horizontal, Vertical

Description

NEMA Combination Starter, Coil Voltage 110/120V AC, Current AC 270 A, Horsepower @ Three Phase - 600V AC 200 hp, Maximum Voltage Rating 600V AC, NEMA Enclosure Rating 4X, NEMA Size 5, Hazardous Location Specification Not Applicable, Starter Style NEMA, Reversing Capability Non-Reversing, Auxiliary Contact Form 1NO, Short Circuit Protection Fusible Disconnect, Includes Control Transformer No, Trip Class 10/20/30, Horsepower @ Three Phase - 208V AC 75 hp, Control Transformer Voltage Not Applicable
