  13. Non-Illuminated Push Button, 30mm, Black
Shop All Push Button Accessories
Eaton

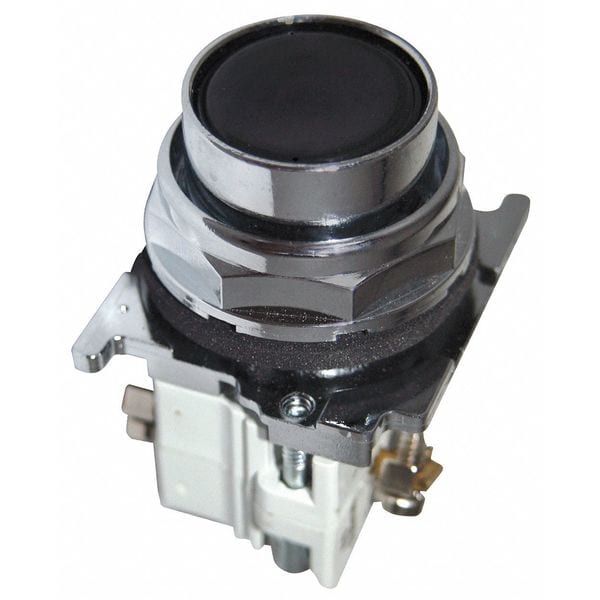

Non-Illuminated Push Button, 30mm, Black

product price: $97.69
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 30 mm
  • Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
  • Legend No Legend
  • Color Black
  • Material metal
See all product information

Product Information

Dimensions

Size 30 mm
Product Height 3.2 in
Product Width 2.1 in
Product Length/Depth 2.1 in
Overall Width 2.1 in
Overall Depth 2.1 in
Manufacturer Warranty Length 1 yr
Panel Cutout Diameter 30 mm
Overall Height 3.2 in

Details

Item Flush Push Button Operator
Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Legend No Legend
Color Black
Material metal
Type of Operator Flush Button
Head Material Metal
Basic Material Metal
Contact Rating 10A @ 600V AC
Number of Operators 1
Bezel Chrome Plated Zinc Die Cast
NEMA Rating 12, 13, 3, 3R, 4, 4X
Contact Form 1NO/1NC
Terminal Connection Screw Clamp
Action Momentary
IP Rating IP65
Standards CE, CSA, UL Listed
Product Type Push Button Operators
Type Class I division 2
Bezel Material Chrome Plated Zinc Die Cast
Degree of protection NEMA 13
Certifications CSA Certified
Series 10250T
Operating Mode Momentary
Illumination Non-illuminated
Mounting method Flush
Contact configuration 1 NO-1 NC
Actuator material Plastic
Actuator color Black
Compliances CE Marked
Rating NEMA 4
Product Name Eaton 10250T pushbutton
Hazardous Location Specification Class I, Div 2, Group B, C, D
Operator Illumination Non-Illuminated
Push Button Style Flush
Operator Material Metal
Operator Voltage Rating - Maximum 120 V AC/DC
Number of Indicator Lights 0
Operating Temperature - Minimum 1 Degrees F
AC Contact Rating 10 A @ 600 V
Mechanical Operating Durability 1.00 x 10^7
NEMA Enclosure Rating 12, 13, 3, 3R, 4, 4X
Operating Temperature - Maximum 150 Degrees F
Resistance Properties Oil and Grease Resistant, Watertight
DC Contact Rating 5 A @ 250 V
Head Color Black

Description

Flush Push Button Operator, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Material Metal
