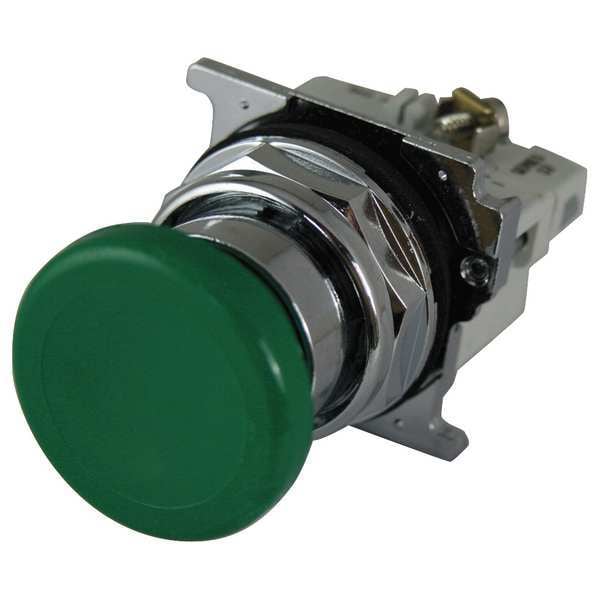

Eaton Non-Illuminated Push Button, 30mm, Green 10250T123-3 - main

Non-Illuminated Push Button, 30mm, Green

  • Mfr # 10250T123-3

  • Zoro # G5230102

product price: $185.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Green
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, RoHS, UL 508, UL 131568
IP Rating
IP65
Size
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T123-3
Zoro #
G5230102
UPC #
786680121876
Country of Origin
United States

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Mushroom Head Diameter
40 mm
Manufacturer Warranty Length
1 yr

Details

Item
Mushroom Head Push Button
Material
metal
Color
Green
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, RoHS, UL 508, UL 131568
IP Rating
IP65
Action
Momentary
NEMA Rating
12, 13, 3, 3R, 4, 4X
Head Material
Metal
Contact Form
2NC
Bezel
Chrome Plated Zinc Die Cast
Number of Operators
1
Basic Material
Metal
Terminal Connection
Screw Clamp
Type of Operator
40mm Mushroom Head
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Contact Rating
10A @ 600V AC
Legend
No Legend
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Operator Material
Metal
Operating Temperature - Minimum
1 Degrees F
Series
10250T
Number of Indicator Lights
0
Mechanical Operating Durability
1.00 x 10^7
Resistance Properties
Oil and Grease Resistant, Watertight
Operating Temperature - Maximum
150 Degrees F
AC Contact Rating
10 A @ 600 V
Operator Illumination
Non-Illuminated
Operator Voltage Rating - Maximum
120 V AC/DC
Head Color
Green
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
DC Contact Rating
5 A @ 250 V
Push Button Style
Mushroom Head

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 2NC, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, RoHS, UL 508, UL 131568, Terminal Connection Screw Clamp
