Shop EATON

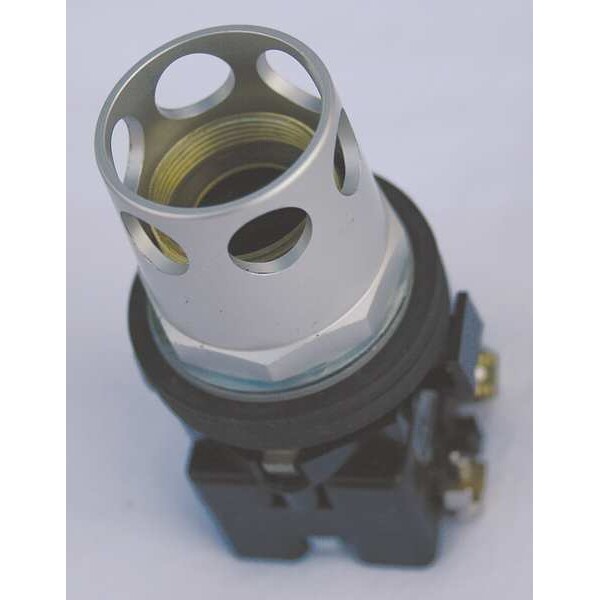

Push Button Operator, Extended, Momentary Action, Not Applicable Release, Illuminated

  • Mfr # HT8GDT1

  • Zoro # G4014577

product price:  $110.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Panel Cutout Diameter
30 mm
Head Material
Plastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HT8GDT1
Zoro #
G4014577
UPC #
782116301317
Country of Origin
Dominican Republic

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Product Width
2 in
Product Length/Depth
6.55 in
Product Height
1.4 in
Overall Depth
6.55 in
Overall Width
2 in
Overall Height
1.4 in
Manufacturer Warranty Length
1 yr

Details

Item
Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Illuminated
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
Replacement Lamp
HT8A, HT8B, HT8C, HT8D, Mfr. No. HT8L1T1
Lamp Type
Incandescent
Lamp Module Type
Transformer
Basic Material
Metal
Bezel
Anodized Aluminum
Lamp Voltage
120V AC
Lamp Module Voltage
120V AC
NEMA Rating
12, 13, 3, 3R, 4, 4X
IP Rating
IP65
Type of Operator
Extended Guarded Button
Color
No Cap
Bezel Material
Chrome
Series
HT800
Features
Allen Bradley Compatible
Type
30.5 mm, Watertight/Oiltight-HT800
Number of Operators
1
Illumination
Illuminated
Certifications
UL Listed
Compliances
CE Marked
Light unit type
Incandescent, transformer
Operator material
Plastic
Light unit voltage
120 Vac/dc
Actuator
Extended
Operating mode
Momentary
Product Name
Eaton HT800 pushbutton
Operating Temperature - Maximum
140 Degrees F
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
10 Degrees F
Lamp Voltage - Maximum
120 V AC/DC
Operator Material
Polymer
Number of Indicator Lights
1
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant, Watertight
Product Type
Push Button Operators

Description

Extended Push Button, 30 mm, Momentary, Type of Operator Extended Guarded Button, Basic Material Metal, Head Material Plastic, Bezel Material Chrome, Color No Cap, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Includes Lamp, Features Allen Bradley Compatible
