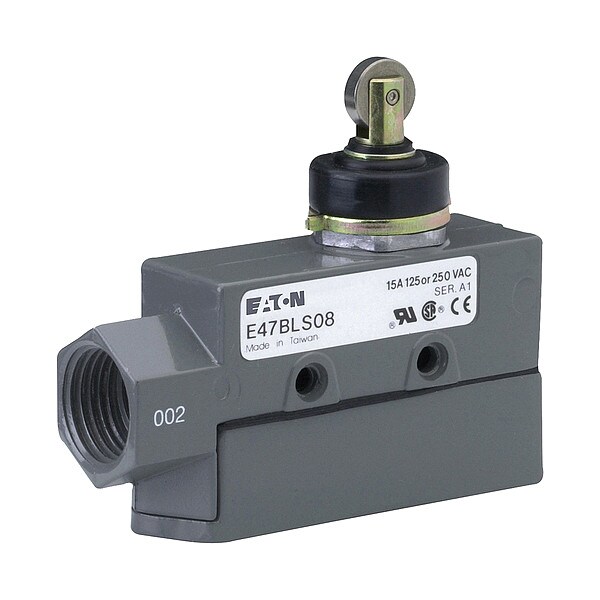

Snap Action Switch, Aluminum, Metal

  • Mfr # E47BLS08
  • Zoro # G413321805
product price:
$
133.99
/ea
Free Shipping & Returns

Key Features

Series
E47
Overall Width
1 in
Overall Depth
3.39 in
Release Force
17.64 ozf
Electrical Connection
Screw Terminal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BLS08
Zoro #
G413321805
UPC #
782113771144
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
1 in
Overall Depth
3.39 in
Overall Height
3.01 in
Manufacturer Warranty Length
1 yr
Roller Width
0.5 in
Actuator Length
1.96 in
Mounting Hole Diameter
4.32 mm

Details

Item
Snap Action Switch
Series
E47
Release Force
17.64 ozf
Electrical Connection
Screw Terminal
AC Contact Rating
15 A @ 250 V
Operating Force - Minimum
0.98 N
Contact Form
1NO/1NC
Includes
Booted Roller Plunger
Operating Temperature - Maximum
176 Degrees F
Body Material
Aluminum
DC Contact Rating
6 A @ 30 V
Operating Force - Maximum
4.9 N
Center Mounting Hole Distance
1 in
Standards
CSA, UL Listed
Pretravel
0.016 in
Actuator Style
Roller-Plunger
Operating Temperature - Minimum
-13 Degrees F
Roller Material
Metal
Overtravel
0.138 in
Roller Position
Top
Differential Travel - Maximum
0.005 in
IP Rating
IP23
Action
Momentary
Pre-Travel - Linear
0.016 in
Mounting Hole Horizontal Center to Center Distance
1 in
Number of Mounting Holes
2
Over Travel - Linear
0.138 in
Includes Actuator
Actuator Included
Mounting Style
Surface
Switch Structure
SPDT
NEMA Enclosure Rating
1
Plunger Adjustability
Fixed
Differential Travel - Linear
0.005 in
Body Configuration
Non Plug-In
Directional Movement
Linear
Boot Sealed Actuator
Boot Included

Description

Snap Action Switch, Series E47
