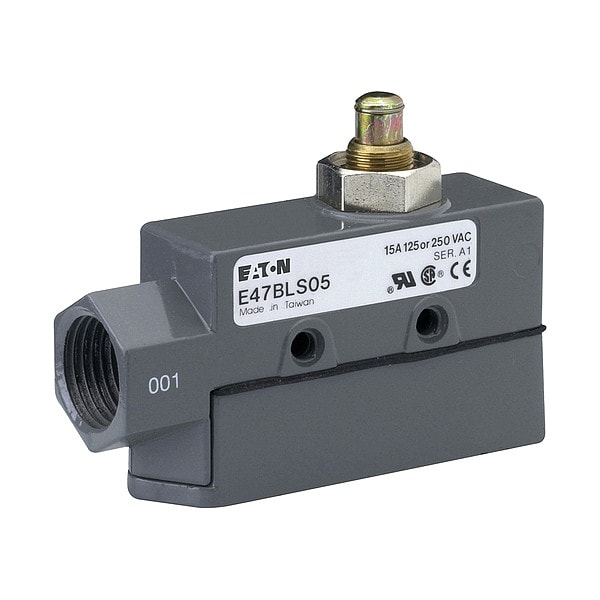

Snap Action Switch, Aluminum, Metal

  • Mfr # E47BLS05
  • Zoro # G713321796
product price:
$
80.55
/ea

Key Features

Body Material
Aluminum
Actuator Style
Plunger
Manufacturer Warranty Length
1 yr
Contact Form
1NO/1NC
Electrical Connection
Screw Terminal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BLS05
Zoro #
G713321796
UPC #
782113771151
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
1 yr
Overall Height
2.55 in
Overall Width
1 in
Overall Depth
3.39 in
Roller Width
0.48 in
Mounting Hole Diameter
4.32 mm
Actuator Length
0.86 in

Details

Item
Limit Switch
Body Material
Aluminum
Actuator Style
Plunger
Contact Form
1NO/1NC
Electrical Connection
Screw Terminal
Includes
Plunger Actuator
Operating Force - Maximum
3.4 N
Standards
CSA, UL Listed
DC Contact Rating
6 A @ 30 V
Pretravel
0.016 in
Release Force
8.82 ozf
Operating Temperature - Maximum
176 Degrees F
AC Contact Rating
15 A @ 250 V
Operating Temperature - Minimum
-13 Degrees F
Series
E47
Center Mounting Hole Distance
1 in
Operating Force - Minimum
1.12 N
Overtravel
0.217 in
Roller Material
Metal
Roller Position
Top
Differential Travel - Maximum
0.002 in
IP Rating
IP23
Mounting Style
Surface
Body Configuration
Non Plug-In
Plunger Adjustability
Fixed
Differential Travel - Linear
0.002 in
Pre-Travel - Linear
0.016 in
Includes Actuator
Actuator Included
Mounting Hole Horizontal Center to Center Distance
1 in
Switch Structure
SPDT
Over Travel - Linear
0.217 in
Action
Momentary
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Directional Movement
Linear
NEMA Enclosure Rating
1

Description

Snap Action Switch, Series E47
