  11. UPS System, 750VA, Line Interactive, Out: 120V AC In: 120V AC

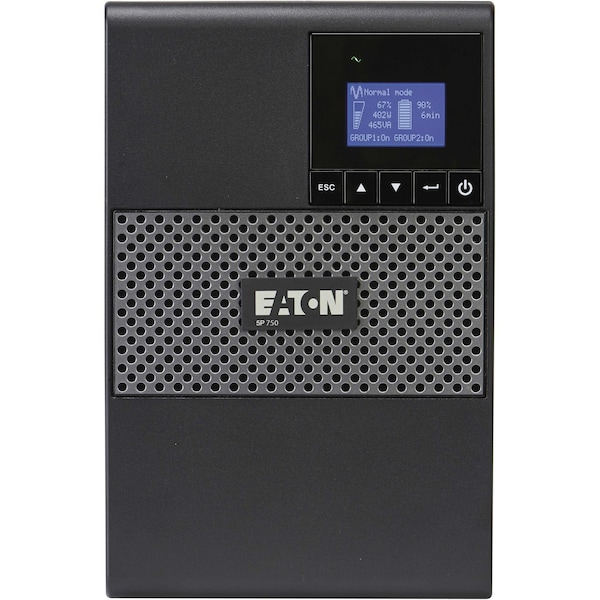

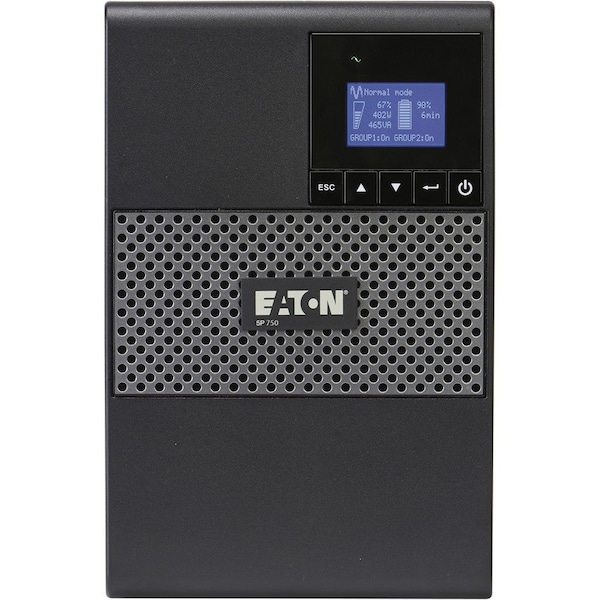

Eaton UPS System, 750VA, Line Interactive, Out: 120V AC In: 120V AC 5P750 - main

UPS System, 750VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # 5P750

  • Zoro # G0492367

product price: $498.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
750VA
Mounting
Tower
Wattage
600 W
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5P750
Zoro #
G0492367
UPC #
743172042989
Country of Origin
Unknown

Dimensions

Width
13.6 in
Input Cord Length
6 ft
Product Length/Depth
13.6 in
Product Height
9.1 in

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
750VA
Mounting
Tower
Wattage
600 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
12 min/4 min
Number of Outlets
8
Standards
UL 1778
Housing Color
Black, Silver
NEMA Receptacle Configuration
(8) 5-15R
Battery Type
Sealed Lead Acid (SLA)
Output Frequency
50/60 Hz
Altitude
Up to 10,000 ft (3000m) without de-rating
Battery replacement
User replaceable
Efficiency
0.97
Nominal Frequency
50-60 Hz
Package Contents
5P UPS|User manual CD|Intelligent Power Software Suite CD|Quick start guide|USB cable|RS-232 serial cable
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Temperature range
0° to 35°C (32° to 95°F)
Input connection
5-15P
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Form factor
Tower
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Software Compatibility
Eaton Intelligent Power Manager (included)
Input Power Factor
0.8
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
BTU Rating
Online: 82, Battery 389
Relative Humidity
0-90% non-condensing
Input voltage range
89-151 Vac (adjustable to 70-153 Vac)
Output Voltage Range
102-132 Vac
Noise level
<45 dB at 1 meter
