Shop EATON

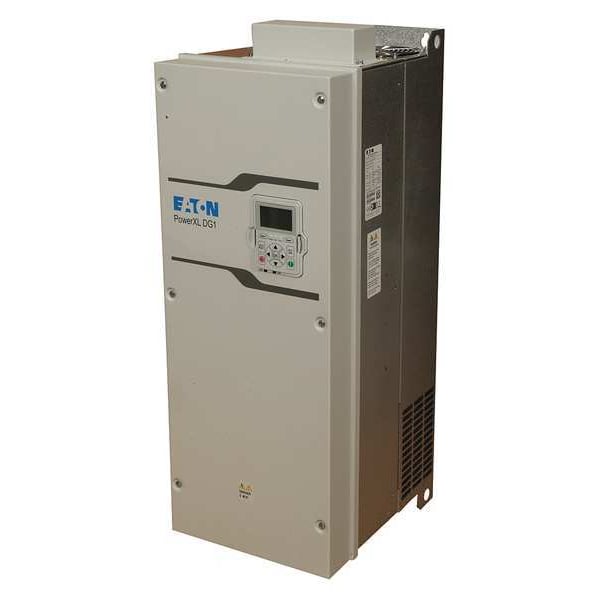

Variable Freq Drive, 60HP, 170A, 208-240VAC

  • Mfr # DG1-32170FN-C21C

  • Zoro # G2166879

product price:
$
10,607.99
/ea
Additional $80.00 delivery surcharge applies per item.
See details

Key Features

Control Method
Active Energy Control
Starting Torque
1.5
Display Type
LCD
Digital Readout
Yes
Input Voltage
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DG1-32170FN-C21C
Zoro #
G2166879
UPC #
786685886152
Country of Origin
Dominican Republic

Dimensions

Height
27.83 in
Width
11.34 in
Depth
13.41 in
Overall Width
18 in
Overall Depth
44 in
Overall Height
15 in

Details

Control Method
Active Energy Control
Starting Torque
1.5
Display Type
LCD
Digital Readout
Yes
Input Voltage
240V AC
With Bypass / No Bypass
No Bypass
Control Type
Built-In Keypad
Output Voltage
240V AC
Accepts Input Control Signal
0-10V DC, 4-20mA
Key Pad Lockout
Yes
Dynamic Braking
Yes
Protection
Incoming Surge, Input Phase Loss, Output Phase Loss, Overcurrent, Overheating, Overload, Overvoltage, Stall, Under Voltage
Displays
LCD Keypad
Input Phase AC
Three
Item
Variable Frequency Drive
Max. HP
60 hp
Start/Stop Control
Automatic, Manual, Programmable
Enclosure
Open
With Line Contactor / No Line Contactor
No Line Contactor
For Use With
3-Phase Inverter Duty Motor
Input Frequency
60/50 Hz
Standards
RoHS, GoST-R, C-Tick, CE, cUL Listed, UL Listed, UL 508C, EN ISO 13849-1, IEC 61508, EN 62061
Output Phase AC
Three
Max. Output Amps
170 A
Color
White
Series
Power XL Drives
Form Factor
0.01 Hz Resolution
Output Type
Analog, Digital
Number of Outputs
(1) Digital Output, (2) Analog Output
Number of Inputs
(8) Digital Inputs, (2) Analog Input
Torque Application
Constant Torque, Variable Torque
Maximum Output Current
170 A
Output Frequency Range
0 to 400 Hz
Output Voltage Range
208V AC to 240V AC
Input Voltage Range
208 to 240V AC
Application
Industrial General Purpose Drive
Enclosure Rating
NEMA 1
Ethernet Port Included
Yes
Maximum Output Power
60 hp
Input Type
Analog, Digital
Brake Chopper Included
Yes
Style
Industrial High Performance
NEMA Rating
NEMA 1
Number of Outputs - Analog
2
Includes Ethernet Port
Yes
Line Contactor Design
No Line Contactor
Output Horsepower
60 hp
Product Type
Variable Frequency Drive
Number of Outputs - Digital
1
Output Current - Maximum
170 A
IP Rating
IP21
Number of Inputs - Digital
8
Output Phase
Three
Number of Inputs - Analog
2
Input Phase
Three
Includes Brake Chopper
Yes
Bypass Design
No Bypass
Output Frequency - Maximum
0 Hz
Output Frequency - Minimum
400 Hz

Description

Variable Frequency Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 60 hp, Maximum Output Current 170 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating NEMA 1
