  11. Variable Frequency Drive, 1 HP, 380-480V, Cutler-Hammer

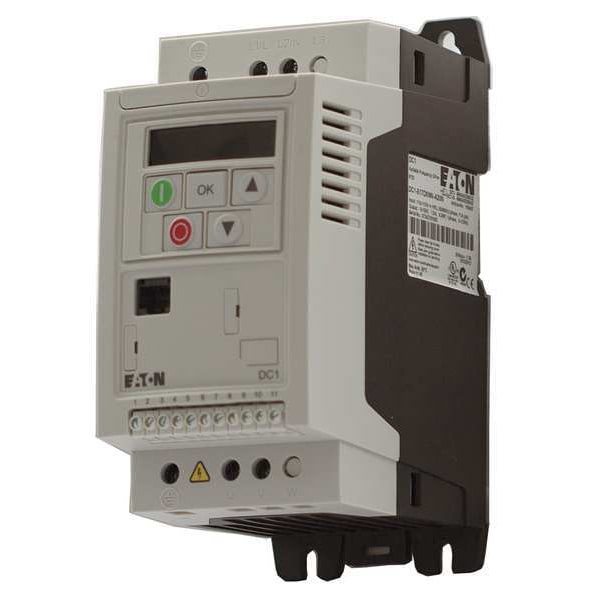

Eaton Variable Frequency Drive, 1 HP, 380-480V, Cutler-Hammer DC1-342D2NN-A20CE1 - main

Variable Frequency Drive, 1 HP, 380-480V, Cutler-Hammer

  • Mfr # DC1-342D2NN-A20CE1

  • Zoro # G0277378

product price: $517.99
/ea
Free Shipping & Returns

Key Features

Max. HP
1 hp
Input Voltage
480V AC
Output Voltage
480V AC
Input Phase AC
Three
Enclosure
Open
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DC1-342D2NN-A20CE1
Zoro #
G0277378
UPC #
786685900896
Country of Origin
United Kingdom

Dimensions

Depth
4.88 in
Width
3.19 in
Height
7.24 in
Overall Depth
9 in
Overall Width
5 in
Overall Height
6 1/4 in

Details

Item
Variable Frequency Drive
Max. HP
1 hp
Input Voltage
480V AC
Output Voltage
480V AC
Input Phase AC
Three
Enclosure
Open
Max. Output Amps
2.2 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Displays
7 Digit
Key Pad Lockout
Yes
Digital Readout
Yes
Protection
IP20
Display Type
7-Segement
Adjustable Acceleration Time
0.1 To 600 sec
Control Method
U/f Control Speed Control With Slip Compensation Sensor less Vector Control (SLV), PM Motors, Synchronous Reluctance Motors, BLDC Motors
Start/Stop Control
Programmable
For Use With
3-Phase Inverter Duty Motor
Accepts Input Control Signal
Yes
Output Frequency Range
0 to 500 Hz
Control Type
Keypad
Dynamic Braking
No
Adjustable Deceleration Time
0.1 To 600 sec
Torque @ 1 Hz
1.75
Starting Torque
1.75
Input Frequency
50/60 Hz
Standards
cUL Certified, EN 61800-3, UkrSepro, EN 60529, UL Listed, EN 61800-5-1
Torque Application
Constant Torque, Variable Torque
Output Type
Analog, Digital
Number of Outputs
(1) Output - Analog or Digital + (1) Relay Output
Input Voltage Range
380 to 480V AC
Maximum Output Power
1 hp
Style
Compact
Maximum Output Current
2.2 A
Output Voltage Range
480V AC
Ethernet Port Included
No
Application
General-Purpose Microdrive, Machinery OEM Drive
Enclosure Rating
NEMA 0
Series
DC1 Family
Color
White
Number of Inputs
(4) Digital Inputs, (2) Analog Inputs
Input Type
Analog, Digital
Brake Chopper Included
No

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 2.2 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0 to 500 Hz, Enclosure Rating NEMA 0
