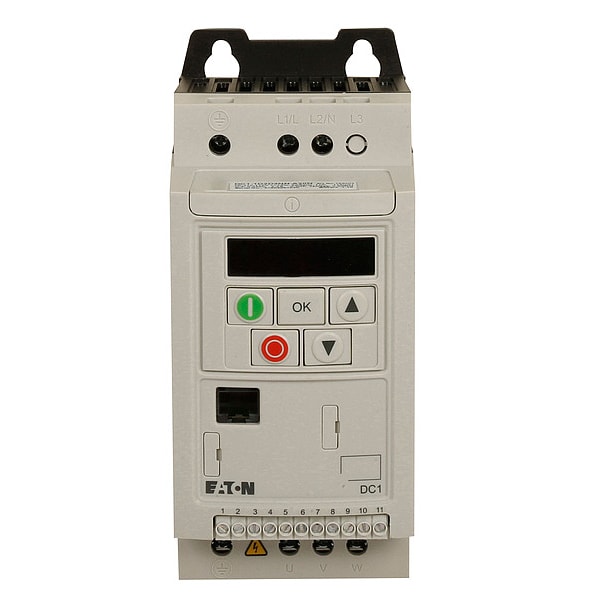

Variable Frequency Drive, 1/2 HP, 115VAC, Cutler-Hammer

  • Mfr # DC1-S17D0NN-A20CE1

  • Zoro # G0103848

product price:  $509.99
/ea
Free Shipping & Returns

Key Features

Max. HP
0.5 hp
Input Voltage
115V AC
Output Voltage
115V AC
Input Phase AC
Single
Enclosure
Open
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DC1-S17D0NN-A20CE1
Zoro #
G0103848
UPC #
786685902692
Country of Origin
United Kingdom

Dimensions

Depth
4.88 in
Width
3.19 in
Height
7.24 in
Overall Depth
4 7/8 in
Overall Height
7 1/4 in
Overall Width
3 1/4 in

Details

Item
Variable Frequency Drive
Max. HP
0.5 hp
Input Voltage
115V AC
Output Voltage
115V AC
Input Phase AC
Single
Enclosure
Open
Max. Output Amps
7 A
Output Phase AC
Single
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Adjustable Deceleration Time
0 to 600 sec
Key Pad Lockout
Yes
Standards
IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5-1, CE, UL, cUL, RCM, Ukr SEPRO, EAC, RoHS, ISO 9001
Control Type
Built-In Keypad
Input Frequency
60/50 Hz
Output Frequency Range
0 to 500 Hz
Adjustable Acceleration Time
0 to 600 sec
For Use With
1-Phase Inverter Duty Motor
Digital Readout
Yes
Control Method
U/f Control, Speed Control, Sensor less Vector Control
Dynamic Braking
No
Start/Stop Control
Automatic, Manual, Programmable
Protection
IP20
Display Type
LED
Displays
LED Keypad
Starting Torque
1.75
Accepts Input Control Signal
Yes
Torque @ 1 Hz
1.75
Input Type
Analog, Digital
Output Type
Analog, Digital
Number of Outputs
(1) Output - Analog or Digital + (1) Relay Output
Input Voltage Range
115V AC
Color
White
Maximum Output Power
1/2 hp
Ethernet Port Included
No
Brake Chopper Included
No
Output Voltage Range
115V AC
Maximum Output Current
7 A
Style
Compact
Number of Inputs
(4) Digital Inputs, (2) Analog Inputs
Torque Application
Constant Torque, Variable Torque
Enclosure Rating
NEMA 0
Application
General-Purpose Microdrive, Machinery OEM Drive
Series
DC1 Family
IP Rating
IP21
Product Type
Variable Frequency Drive
Number of Outputs - Relay
1
Output Frequency - Maximum
0 Hz
Output Horsepower
1/2 hp
Input Phase
Single
Number of Outputs - Analog
1
Output Frequency - Minimum
500 Hz
Output Current - Maximum
7 A
Includes Brake Chopper
No
Number of Inputs - Analog
2
Output Phase
Single
Bypass Design
No Bypass
Line Contactor Design
No Line Contactor
Number of Inputs - Digital
4
Includes Ethernet Port
No
Number of Outputs - Digital
1

Description

Variable Frequency Drive, Input Voltage 115V AC, Input Phase AC Single, Input Frequency 50/60 Hz, Maximum Output Power 1/2 hp, Maximum Output Current 7 A, Output Voltage 115V AC, Output Phase AC Single, Output Frequency Range 0 to 500 Hz, Enclosure Rating NEMA 0
