  6. Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded
Eaton Wiring Devices Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded SA540GD - main

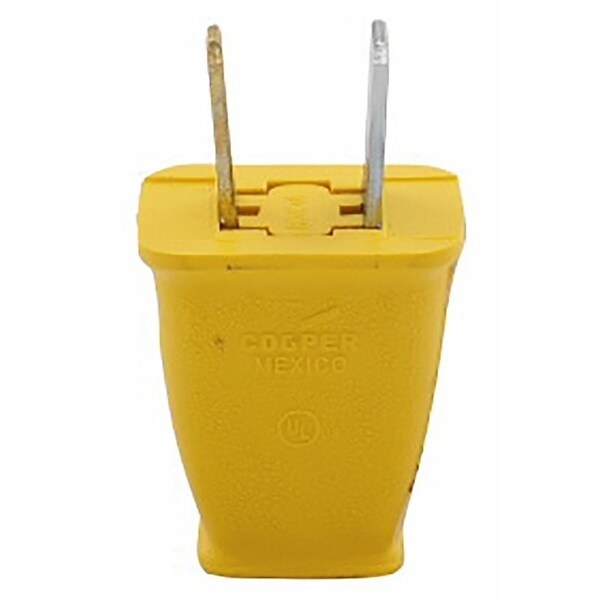

Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded

  • Mfr # SA540GD

  • Zoro # G207387628

product price:  $3.69
/ea
Sold in multiples of 2 for $7.38

Key Features

NEMA Plug Configuration
1-15P
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SA540GD
Zoro #
G207387628
UPC #
52757540803
Country of Origin
United States

Dimensions

Cord Size
0.33" in diameter
Width
.75 IN
Height
1.16 IN
Wire Size
#16 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
1-15P
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Non-Grounded
Housing Color
Yellow
Standards
cULus
Resistance Properties
Impact Resistant
Special Features
Polarized, spring action, non-grounding
Material
Thermoplastic
Application
Industrial; Standard
Body Style
Straight body
Body Material
Impact-resistant thermoplastic
Wiring Method
Back wire
Number Of Wires
Two-wire
Contact Material
Brass
Weight (Lbs.)
.055 LB
Connection Type
Screw

Description

Spring action plug provides cord grip for easy storage on appliances such as vacuum cleaners, fans and more Made of high impactresistant thermoplastic for longterm durability Cord diameter 2164 in Listed to UL 498 file no E15012 NOM Certified Meets flammability requirements per UL 94, VO rated Temperature rating 20 to 60 deg C NEMA 115
