Shop EDWARDS SIGNALING

Horn, Horn, Continuous, 24V AC, 97 dB, Heavy Duty Die Cast, Gray, Wall Mount

  • Mfr # 878EX-G5

  • Zoro # G5807706

product price:  $1,345.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Wall
Amps
0.625A
Color
Gray
Audible Alarm Type
Horn
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
878EX-G5
Zoro #
G5807706
UPC #
782640258101
Country of Origin
Mexico

Dimensions

Width
4.875 in
Height
4.875 in
Depth
3.3125 in
Overall Depth
3 5/16 in
Overall Width
4 7/8 in
Overall Length
4 7/8 in

Details

Item
Horn
Housing Material
Heavy Duty Die Cast
Mounting
Wall
Amps
0.625A
Color
Gray
Audible Alarm Type
Horn
Voltage
24V AC
Standards
UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
97 dB
Sound Pattern
Continuous
Hazardous Division
1, 2
Visual Indicator Type
No Visual Indicator
Operating Temp.
-13 Degrees to 104 Degrees F
Vibrating
Yes
Hazardous Class
I, II, III
Power Source
Wire
Features
Corrosion Resistant Heat Flowed Epoxy Finish
Material
Heavy Duty Die Cast
Product Type
Horn
Rating
NEMA 4X
Vibration
Vibrating
Operating Current
0.625A
Alarm Volume @ 1 m - Maximum
110 dB
Number of Sound Patterns
1
NEMA Rating
NEMA 4X
For Location
Indoor, Outdoor
Sound Style
Horn
Alarm Volume @ 10 ft - Maximum
100 dB
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2
IP Rating
NEMA 4X
Sound Principle
Vibrating
Operating Temperature - Maximum
104 Degrees F
Sound Continuity
Continuous
Operating Temperature - Minimum
-13 Degrees F
Operating Voltage
24V AC
Power Source - TS Only
Wire

Description

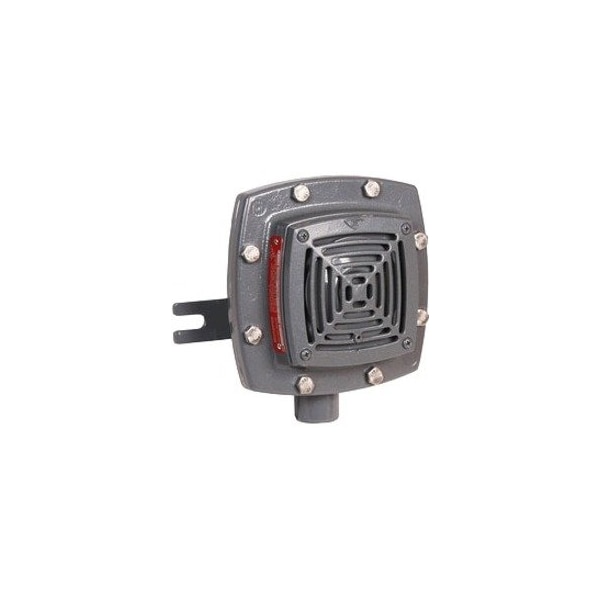

The EDWARDS SIGNALING 878EX-G5 is a wall-mount audible horn for indoor and outdoor signaling. It operates on 24V AC and produces a continuous horn signal with a rated sound level of 97 dB, with maximum output ratings of 110 dB at 1 m and 100 dB at 10 ft. The die-cast housing has a gray heat-flowed epoxy finish, and the unit is rated for hazardous locations including Class I and II, Division 1 and 2.

Key Features:

  • Audible alarm type: Horn with continuous sound pattern.
  • Sound output: 97 dB nominal; maximum 110 dB at 1 m and 100 dB at 10 ft.
  • Voltage/current: 24V AC operation with 0.625A operating current.
  • Construction: Die-cast housing with gray heat-flowed epoxy finish.
  • Mounting: Wall-mount design.
  • Location rating: Indoor and outdoor use.
  • Hazardous location rating: Class I, Division 1; Class I, Division 2; Class II, Division 1; Class II, Division 2.
  • Enclosure rating: NEMA 4X.
  • Operating temperature: -13 F to 104 F.
  • Size: 4.875 in H x 4.875 in W x 3.3125 in D.
  • Standard: UL Listed.
