Shop EDWARDS SIGNALING

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Amber Lens, Gray Housing

  • Mfr # 868STRA-N5
  • Zoro # G4858637
product price:
$
457.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
868STRA-N5
Zoro #
G4858637
UPC #
782640239322
Country of Origin
Mexico

Dimensions

Height
5.5 in
Depth
0.625 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Amber Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Operating Temp.
32 Degrees to 120 Degrees F
Housing Color
Gray
Light Output
90 CP
Current Drawn
148 mA
Lens Color
Amber
Flashes per Minute
60
Vibrating
No
Visual Indicator Type
Strobe
Power Source
Wire
Product Type
Horn and Strobe
Light Source
Xenon
Operating Current
0.148 A
Light Operating Mode
Strobe
Connection Type
Wire Leads
Mounting Style
Surface Mount
Sound Continuity
Continuous
Operating Temperature - Minimum
-31 Degrees F
Operating Temperature - Maximum
150 Degrees F
Sound Style
Horn
Control Protocol
Direct Wire
Alarm Volume @ 1 m - Maximum
100 dB
Alarm Volume @ 10 ft - Maximum
90 dB
Vibration
No Vibration
Brightness Selection
Fixed Brightness
Light Intensity
90 CP
For Location
Indoor
Number of Sound Patterns
1
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

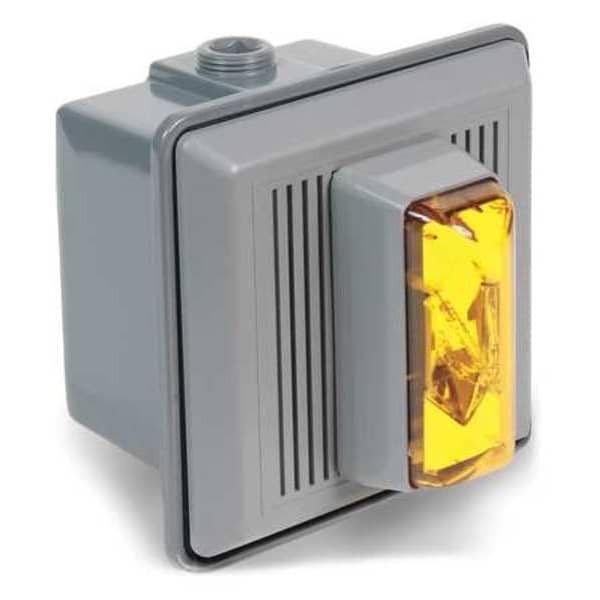

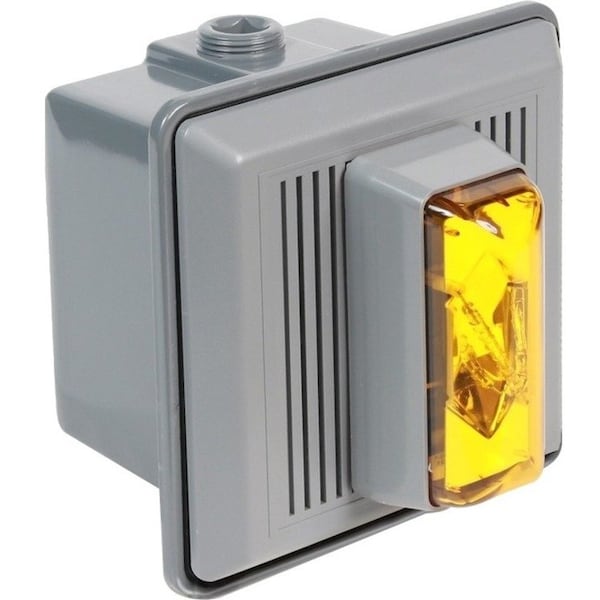

The EDWARDS SIGNALING 868STRA-N5 is an indoor horn strobe that combines an audible horn and amber strobe in one surface-mount unit. It operates on 120V AC and provides a continuous horn signal with a visual strobe indicator for use in facility signaling applications with both audible and visual indicators.

Key Features:

  • Audible/visual device with horn and strobe combination
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Horn with 1 continuous sound pattern
  • Amber xenon strobe with 90 CP light output
  • Flash rate: 60 flashes per minute
  • Power: 120V AC with direct wire connection and wire leads
  • Current draw: 148 mA operating current
  • Gray thermoplastic housing with amber lens
  • Surface-mount design
  • Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
  • Operating temperature range: 32°F to 120°F
  • UL Listed
