Shop EDWARDS SIGNALING

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Gray Housing, Red Lens

  • Mfr # 868STRR-AQ
  • Zoro # G6122821
product price:
$
446.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
868STRR-AQ
Zoro #
G6122821
UPC #
782640239506
Country of Origin
Mexico

Dimensions

Depth
0.625 in
Height
5.5 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Gray Housing, Red Lens
Audible Alarm Type
Horn
Voltage
24V AC, 24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Lens Color
Red
Light Output
21 CP
Housing Color
Gray
Flashes per Minute
60
Vibrating
No
Operating Temp.
32 Degrees to 120 Degrees F
Current Drawn
462 mA @ 24V AC, 412 mA @ 24V DC
Visual Indicator Type
Strobe
Power Source
Wire
Product Type
Horn and Strobe
Operating Temperature - Maximum
150 Degrees F
Operating Current
0.462 A @ 24V AC, 0.412 A @ 24V DC
Number of Sound Patterns
1
Operating Temperature - Minimum
-31 Degrees F
Light Operating Mode
Strobe
For Location
Indoor
Light Intensity
21 CP
Alarm Volume @ 10 ft - Maximum
90 dB
Sound Continuity
Continuous
Vibration
No Vibration
Alarm Volume @ 1 m - Maximum
100 dB
Connection Type
Wire Leads
Light Source
Xenon
Control Protocol
Direct Wire
Mounting Style
Surface Mount
Sound Style
Horn
Brightness Selection
Fixed Brightness
Operating Voltage
24 V AC, 24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

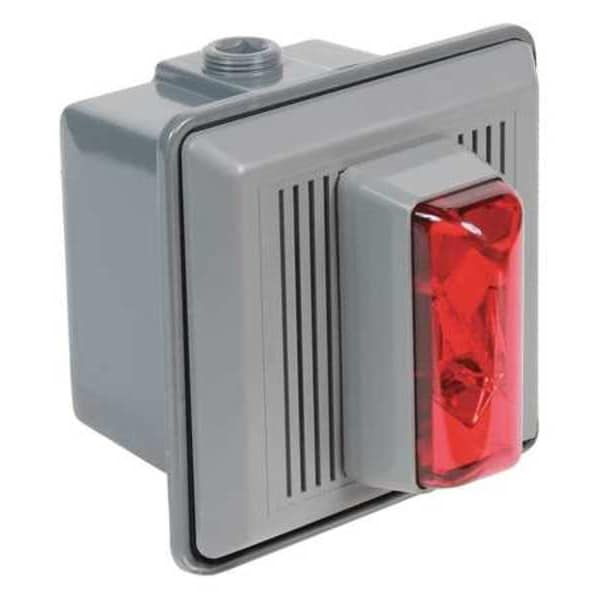

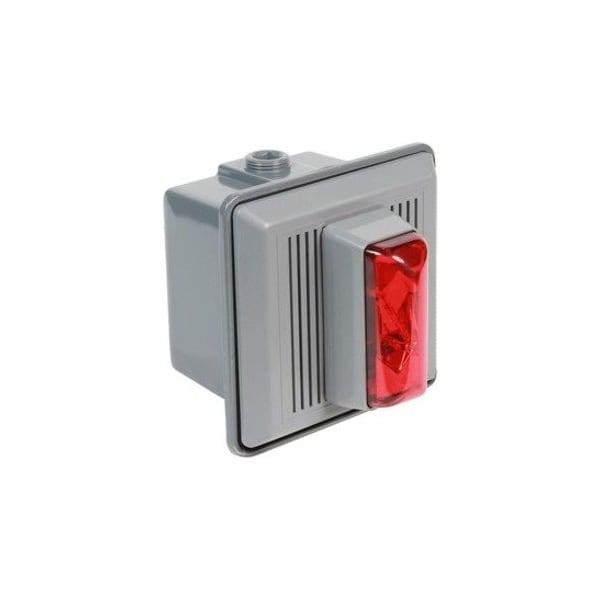

EDWARDS SIGNALING 868STRR-AQ is an indoor horn strobe with a surface-mount design that combines an audible horn and a red xenon strobe in one unit. It operates on 24V AC or 24V DC and provides continuous audible output with visual signaling for alarm and warning applications.

Key Features:

  • Audible horn and red xenon strobe in one unit
  • Sound output: 90 dB at 10 ft.; 100 dB maximum at 1 m
  • Sound pattern: continuous horn
  • Light output: 21 CP red xenon strobe
  • Flash rate: 60 flashes per minute
  • Voltage: 24V AC or 24V DC
  • Current draw: 462 mA at 24V AC; 412 mA at 24V DC
  • Connection/control: wire leads with direct wire control
  • Housing: gray thermoplastic with red lens
  • Mounting: surface mount
  • Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
  • For indoor use
  • Operating temperature: 32°F to 120°F
  • UL Listed
