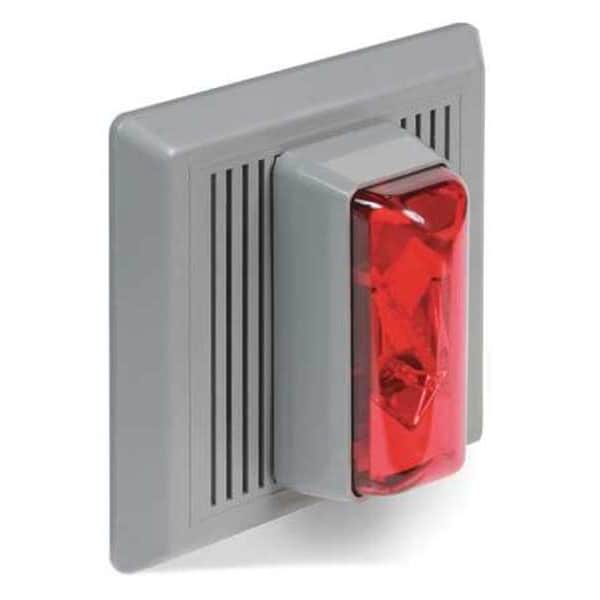

Horn Strobe, Horn, Continuous, 24 V AC, 24V DC, 90 dB, Thermoplastic, Gray Housing, Red Lens

  • Mfr # 869STRR-AQ

  • Zoro # G4858664

product price:
$
332.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
869STRR-AQ
Zoro #
G4858664
UPC #
782640239704
Country of Origin
Mexico

Dimensions

Height
5.5 in
Width
5.5 in
Depth
0.625 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Overall Width
5 1/2 in
Wire Rope Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
412 mA @ 24V DC, 462 mA @ 24V AC
Color
Gray Housing, Red Lens
Audible Alarm Type
Horn
Voltage
24 V AC, 24V DC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Lens Color
Red
Current Drawn
462 mA @ 24V AC, 412 mA @ 24V DC
Housing Color
Gray
Light Output
21 CP
Flashes per Minute
60
Visual Indicator Type
Strobe
Vibrating
No
Operating Temp.
-31 Degrees to 150 Degrees F Outdoor, 32 Degrees to 120 Degrees F Indoor
Power Source
Wire
Features
Flame Resistant
Product Type
Horn and Strobe
Sound Continuity
Continuous
Vibration
No Vibration
Light Operating Mode
Strobe
For Location
Indoor
Operating Current
0.462 A @ 24V AC, 0.412 A @ 24V DC
Number of Sound Patterns
1
Brightness Selection
Fixed Brightness
Operating Temperature - Minimum
32 Degrees F
Light Intensity
21 CP
Connection Type
Wire Leads
Alarm Volume @ 1 m - Maximum
100 dB
Sound Style
Horn
Control Protocol
Direct Wire
Light Source
Xenon
Operating Temperature - Maximum
120 Degrees F
Alarm Volume @ 10 ft - Maximum
90 dB
Mounting Style
Flush Mount
Operating Voltage
24 V AC, 24V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 869STRR-AQ is an indoor horn strobe that combines an audible horn and visual strobe in one unit. It operates on 24V AC or 24V DC, features a continuous horn pattern, and includes a red xenon strobe lens in a gray thermoplastic housing. The unit is configured for direct-wire installation with wire leads and supports flush or surface mounting.

Key Features:

  • Audible and visual signaling with horn and strobe indicator
  • Sound output: 90 dB at 10 ft maximum; 100 dB at 1 m maximum
  • Sound pattern: continuous horn; 1 sound pattern
  • Light output: 21 CP xenon strobe, 60 flashes per minute
  • Voltage: 24V AC, 24V DC
  • Current draw: 462 mA at 24V AC; 412 mA at 24V DC
  • Construction: gray thermoplastic housing with red lens
  • Mounting and connection: flush mount, surface mounting, wire leads, direct-wire control
  • Size: 5.5 in H x 5.5 in W x 0.625 in D
  • Location rating: indoor
  • Standards: UL Listed
