Shop EDWARDS SIGNALING

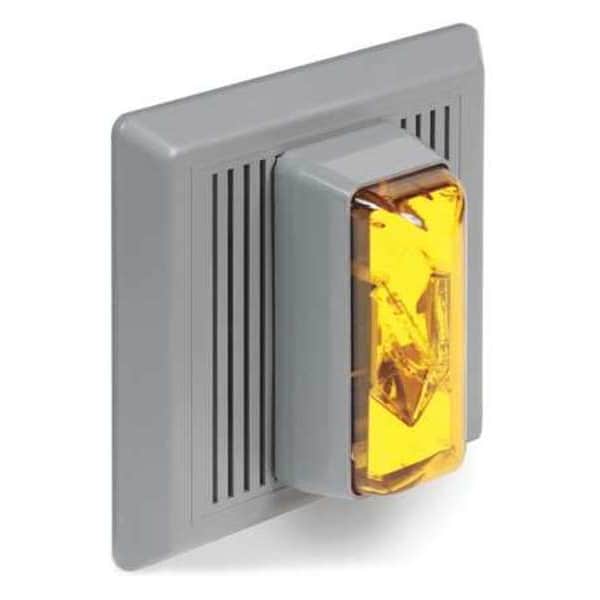

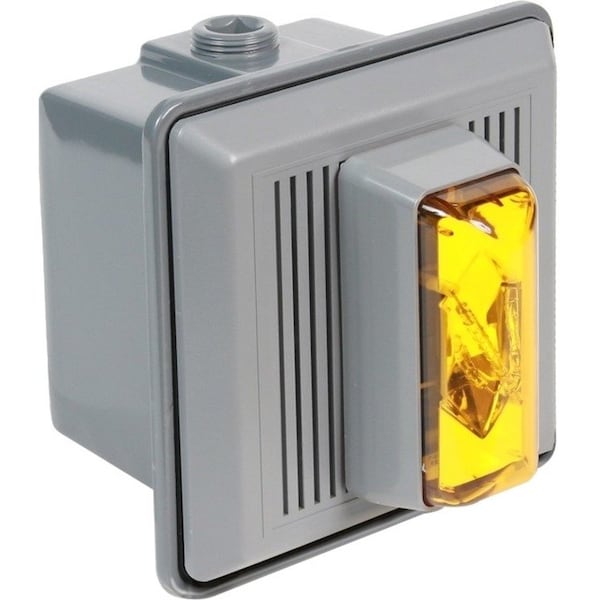

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Amber Lens, Gray Housing

  • Mfr # 869STRA-N5

  • Zoro # G6181804

product price:  $352.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
869STRA-N5
Zoro #
G6181804
UPC #
782640239520
Country of Origin
Mexico

Dimensions

Depth
0.625 in
Height
5.5 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Amber Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Lens Color
Amber
Operating Temp.
-31 Degrees to 150 Degrees F Outdoor, 32 Degrees to 120 Degrees F Indoor
Vibrating
No
Flashes per Minute
60
Light Output
90 CP
Visual Indicator Type
Strobe
Housing Color
Gray
Current Drawn
148 mA
Power Source
Wire
Product Type
Horn and Strobe
For Location
Indoor
Brightness Selection
Fixed Brightness
Sound Continuity
Continuous
Number of Sound Patterns
1
Mounting Style
Flush Mount
Light Operating Mode
Strobe
Operating Temperature - Minimum
32 Degrees F
Alarm Volume @ 1 m - Maximum
100 dB
Alarm Volume @ 10 ft - Maximum
90 dB
Operating Temperature - Maximum
120 Degrees F
Operating Current
0.148 A
Sound Style
Horn
Vibration
No Vibration
Light Source
Xenon
Connection Type
Wire Leads
Light Intensity
90 CP
Control Protocol
Direct Wire
Operating Voltage
120V AC
Power Source - TS Only
Wire

Description

EDWARDS SIGNALING 869STRA-N5 is an indoor horn strobe with an audible horn and an amber xenon strobe for warning and notification applications. It operates on 120V AC and provides a continuous horn signal with a strobe flash rate of 60 flashes per minute. The unit has a gray thermoplastic housing, an amber lens, and wire leads for installation.

Key Features:

  • Audible and visual signaling in one device
  • Sound output: 90 dB at 10 ft and 100 dB maximum at 1 m
  • Continuous horn with 1 sound pattern
  • 90 CP amber strobe with xenon light source
  • Flash rate: 60 flashes per minute
  • 120V AC operation with 148 mA current draw
  • Gray thermoplastic housing with amber lens
  • Flush mount style with surface mounting and wire leads
  • Dimensions: 5.5 in. H x 5.5 in. W x 5/8 in. D
  • Indoor temperature rating: 32 to 120 degrees F
  • UL Listed
