Shop EDWARDS SIGNALING

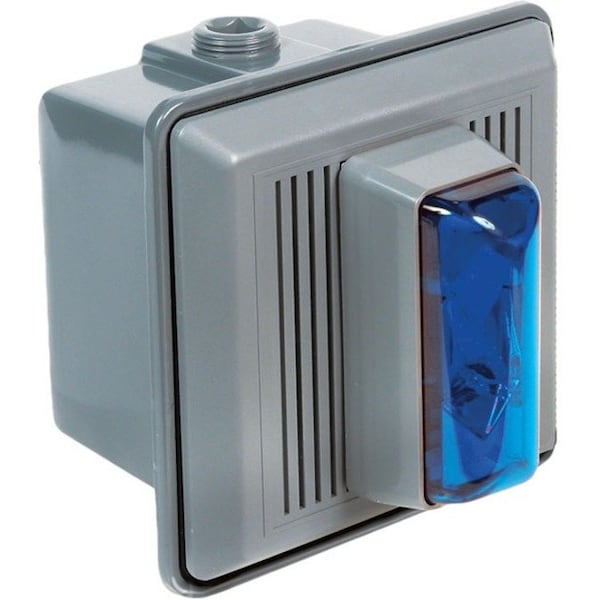

Horn Strobe, Horn, Continuous, 120V AC, 90 dB, Thermoplastic, Blue Lens, Gray Housing, Surface Mount

  • Mfr # 869STRB-N5

  • Zoro # G6192505

product price:
$
333.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Audible Alarm Type
Horn
Standards
UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
869STRB-N5
Zoro #
G6192505
UPC #
782640239544
Country of Origin
Mexico

Dimensions

Depth
0.625 in
Height
5.5 in
Width
5.5 in
Overall Width
5 1/2 in
Overall Depth
5/8 in
Overall Length
5 1/2 in
Wire Rope Length
5 1/2 in
Length
5 1/2 in

Details

Item
Horn Strobe
Housing Material
Thermoplastic
Mounting
Surface
Amps
148 mA
Color
Blue Lens, Gray Housing
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Indoor
Decibels
90 dB
Sound Pattern
Continuous
Lens Color
Blue
Flashes per Minute
60
Light Output
20 CP
Visual Indicator Type
Strobe
Current Drawn
148 mA
Vibrating
No
Operating Temp.
-31 Degrees to 150 Degrees F Outdoor, 32 Degrees to 120 Degrees F Indoor
Housing Color
Gray
Power Source
Wire
Product Type
Horn and Strobe
Operating Temperature - Maximum
120 Degrees F
Operating Temperature - Minimum
32 Degrees F
Alarm Volume @ 10 ft - Maximum
90 dB
Brightness Selection
Fixed Brightness
Sound Continuity
Continuous
Connection Type
Wire Leads
Mounting Style
Flush Mount
Alarm Volume @ 1 m - Maximum
100 dB
Light Operating Mode
Strobe
Light Intensity
20 CP
Vibration
No Vibration
For Location
Indoor
Operating Current
0.148 A
Number of Sound Patterns
1
Control Protocol
Direct Wire
Sound Style
Horn
Light Source
Xenon
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 869STRB-N5 is a horn strobe that combines an audible horn and blue xenon strobe in one surface-mounted unit. It operates on 120V AC, is rated for indoor use, and includes audible and visual signaling features. The unit provides a continuous horn signal with a maximum sound output of 90 dB at 10 ft and 100 dB at 1 m.

Key Features:

  • Product type: Horn strobe with continuous horn output and visual strobe indicator
  • Sound output: Maximum 90 dB at 10 ft; maximum 100 dB at 1 m
  • Light output: 20 CP blue strobe with xenon light source and 60 flashes per minute
  • Electrical rating: 120V AC, 148 mA current draw (0.148 A operating current)
  • Construction: Thermoplastic housing with gray housing and blue lens
  • Mounting and connection: Surface mount with wire leads and direct wire control
  • Dimensions: 5.5 in. H x 5.5 in. W x 0.625 in. D
  • Operating temperature: 32°F to 120°F
  • Certification: UL Listed
