Shop EDWARDS SIGNALING

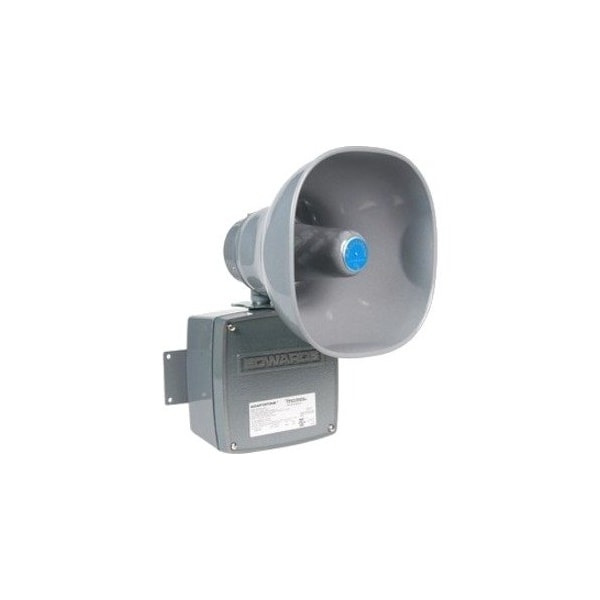

Multi-Tone Signal, Horn, Continuous, 24V AC/DC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount

  • Mfr # 5530M-24AQ

  • Zoro # G5668144

product price:  $1,379.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.74 A @ 24V DC, 1.3 A @ 24V AC
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5530M-24AQ
Zoro #
G5668144
UPC #
782640280003
Country of Origin
Mexico

Dimensions

Depth
8.875 in
Width
8.25 in
Height
13 in
Overall Width
8 in
Overall Length
3 1/2 in
Overall Depth
8 3/4 in
Wire Rope Length
3 1/2 in

Details

Item
Multi-Tone Signal
Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.74 A @ 24V DC, 1.3 A @ 24V AC
Color
Gray
Audible Alarm Type
Horn
Voltage
24V AC/DC
Standards
cULus, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110 dB
Sound Pattern
Continuous
Operating Temp.
-31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non-Hazardous Locations
Vibrating
No
Visual Indicator Type
No Visual Indicator
Hazardous Division
2
Hazardous Class
I, II, III
Power Source
Wire
Features
Captive Components, Suitable for Division 2 Locations
Material
Zinc Alloy
Product Type
Tone Generator
Vibration
No Vibration
Sound Continuity
Continuous
Operating Temperature - Maximum
104 Degrees F
Connection Type
Wire Leads
For Location
Indoor, Outdoor
Alarm Volume @ 10 ft - Minimum
98 dB
Operating Current
0.740 A
NEMA Rating
NEMA 3R
Alarm Volume @ 1 m - Minimum
95 dB
Sound Style
Horn
Mounting Style
Surface Mount
Operating Temperature - Minimum
-31 Degrees F
For Hazardous Location
Class I, Division 2, Class II, Division 2
Number of Sound Patterns
1
Operating Voltage
24V AC/DC
Power Source - TS Only
Wire

Description

The EDWARDS SIGNALING 5530M-24AQ is a surface-mount multi-tone signal with a horn-style audible output and continuous sound pattern. It operates on 24V AC/DC and produces up to 110 dB output for audible warning applications in locations rated for indoor or outdoor use. Includes a zinc alloy housing, conduit mounting option, wire-lead connection, and hazardous location ratings for Class I, Division 2 and Class II, Division 2 locations.

Key Features:

  • Horn-style audible alarm with continuous sound pattern
  • Sound output up to 110 dB; minimum alarm volume rated at 95 dB at 1 m and 98 dB at 10 ft
  • 24V AC/DC operation
  • Current draw: 0.74 A at 24V DC and 1.3 A at 24V AC
  • Wire-lead connection with wired power source
  • Conduit and surface-mount installation
  • Zinc alloy housing with gray finish
  • Rated for indoor and outdoor use
  • Hazardous location ratings: Class I, Division 2; Class II, Division 2; hazardous classes I, II, III; Division 2
  • NEMA 3R rating
  • Operating temperature: -31°F to 104°F in hazardous locations; -40°F to 151°F in non-hazardous locations
  • Captive components; no visual indicator; no vibration
  • cULus and UL Listed
