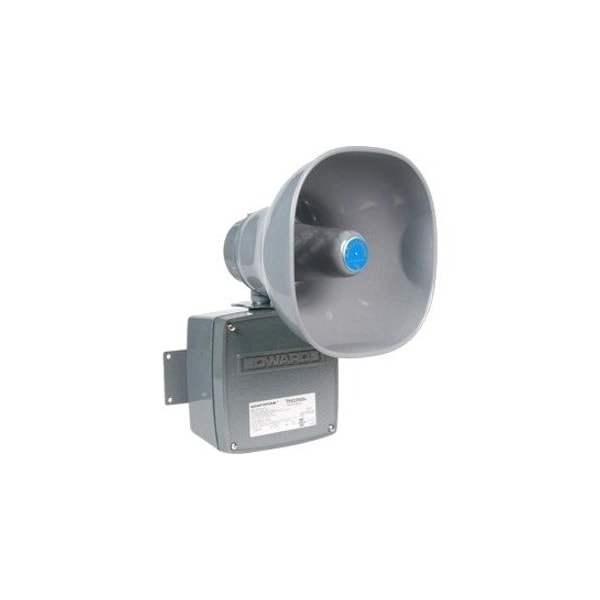

Multi-Tone Signal, Horn, Continuous, 120V AC, 110 dB, Zinc Alloy, Gray, Conduit, Surface Mount

  • Mfr # 5530M-24N5
  • Zoro # G5649156
product price:
$
1,439.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.36
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5530M-24N5
Zoro #
G5649156
UPC #
782640280027
Country of Origin
Mexico

Dimensions

Width
8.25 in
Height
13 in
Depth
8.875 in
Overall Width
8 in
Overall Length
3 1/2 in
Overall Depth
8 3/4 in
Wire Rope Length
3 1/2 in
Length
3 1/2 in

Details

Item
Multi-Tone Signal
Housing Material
Zinc Alloy
Mounting
Conduit, Surface
Amps
0.36
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
cULus, UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
110 dB
Sound Pattern
Continuous
Operating Temp.
-31 Degrees to 104 Degrees F Hazardous Locations, -40 Degrees to 151 Degrees F Non - Hazardous Locations
Hazardous Class
I, II, III
Visual Indicator Type
No Visual Indicator
Hazardous Division
2
Vibrating
No
Power Source
Wire
Features
Captive Components, Suitable for Division 2 Locations
Product Type
Tone Generator
Material
Zinc Alloy
For Hazardous Location
Class I, Division 2, Class II, Division 2
Alarm Volume @ 10 ft - Minimum
98 dB
Operating Current
0.360 A
Alarm Volume @ 1 m - Minimum
95 dB
Operating Temperature - Minimum
-31 Degrees F
Mounting Style
Surface Mount
Vibration
No Vibration
Number of Sound Patterns
1
NEMA Rating
NEMA 3R
Sound Continuity
Continuous
For Location
Indoor, Outdoor
Sound Style
Horn
Operating Temperature - Maximum
104 Degrees F
Connection Type
Wire Leads
Operating Voltage
120V AC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

EDWARDS SIGNALING 5530M-24N5 is a surface-mount multi-tone signal with a horn-style audible output and continuous sound pattern. It operates on 120V AC, has a sound output rating up to 110 dB, and is rated for indoor and outdoor locations. The unit features a zinc alloy housing, conduit/surface mounting, and multiple Division 2 hazardous location ratings.

Key Features:

  • Horn-style audible alarm with continuous sound pattern
  • Sound output rated up to 110 dB; minimum alarm volume rated at 95 dB at 1 m and 98 dB at 10 ft
  • 120V AC operation with 0.36 A operating current
  • Surface and conduit mounting with wire leads connection
  • Zinc alloy housing with gray finish
  • Rated for indoor and outdoor locations
  • Multiple Division 2 hazardous location ratings
  • NEMA 3R enclosure rating
  • Operating temperature: -31 to 104 degrees F in hazardous locations; -40 to 151 degrees F in non-hazardous locations
  • Captive components; no visual indicator; no vibration
  • cULus and UL Listed
