Shop ELKAY

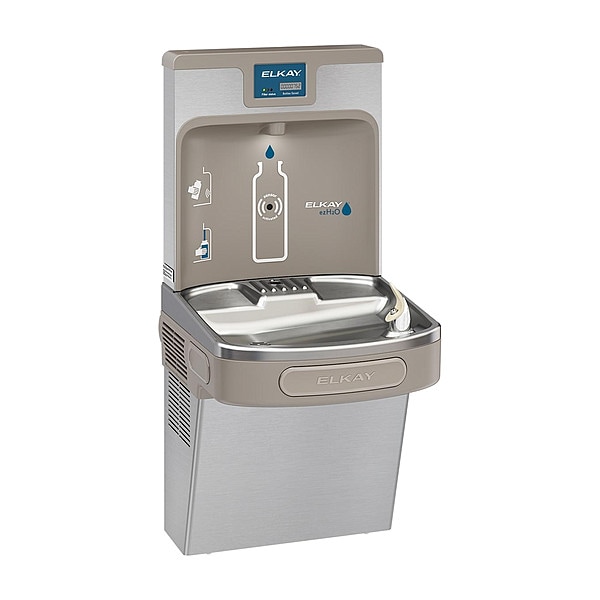

Drinking Fountain with Bottle Filler On-Wall Mount, 1 Levels, 1-1/2", Silver, Indoor

  • Mfr # LZS8WSVRSK
  • Zoro # G0413056
product price:
$
1,831.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Indoor / Outdoor
Indoor
Mounting Type
On-Wall
Color
Silver
Size
1-1/2"
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LZS8WSVRSK
Zoro #
G0413056
UPC #
094902469966
Country of Origin
United States
Indoor / Outdoor
Indoor
Mounting Type
On-Wall
Color
Silver
Item
Drinking Fountain with Bottle Filler
Voltage
115V AC
Drain Connection
1 1/4 in
Number of Levels
1
Cold Water Capacity
8 gph
Standards
ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, CAN/CSA C22.2 No. 120, FCC and ISED, NSF 372 (lead free), NSF 401, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399
Includes
Bottle Filler, Filter, Water Cooler
ADA Compliant
ADA Compliant
Refrigerant
R134A
Regulator
Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Full Load Amps
5 A
Inlet
3/8 in OD
Operation
Push Bar Fountain, Touchless Bottle Filler
Refrigerated / Non-Refrigerated
Refrigerated
Vandal Resistant
Vandal Resistant
Dispenser Design
Wall
Compliance
Accessibility, Electrical, Lead, Mechanical, Water Qualtiy
Water Temp.
50 Degrees F
Compressor HP
1/5 hp
Dispenser Operation
Electronic Sensor (Bottle), Front Push Button (Fountain)
Sub-Category
Filters and Cartridges
Fits Brand
Elkay
Material
Plastic Handle, Steel
Features
Fillsafe Recognition Automatically Recognizes New Filter and Updates Led Light Back to Green, Green Ticker(TM) Informs User of Number of 20 oz Plastic Water Bottles Saved from Waste, Key Plastic Components are Manufactured with Silver Ion Antimicrobial Agent Helping to Provide Clean Stain- and Odor-Free Surfaces, Low-Energy Led Light Encourages Use Assists with Filling Dark Bottles and Illuminates in Dark Hallways, Quick Filter Change Wrapper Provides Easy Access to Filter from Front and Side of Cooler for Convenient and Efficient Filter Change in under a Minute
For Use With
Water Coolers
Includes Back Panel
Back Panel Not Included
Operating Voltage
115V AC
Minimum Supply Line Pressure
20 psi
Power Source
Electric Corded
Compressor Horsepower
1/4 hp
Maximum Cold Water Temperature
50 Degrees F
Environment
Indoor
Housing Finish
Chrome-Plated
Station Type
Bottle Filling Dispenser, Single Fountain
Includes Water Filter
Water Filter Included
Housing Color
Silver
Antimicrobial
Antimicrobial
Refrigeration
Refrigerated
Product Weight
85 lb
Maximum Constant Stream Pressure
105 psi
Number of Mounting Holes
6
Minimum Constant Stream Pressure
20 psi
Filter Status Indicator
Filter Status Indicator Included
Cooling Capacity
8 gph
Power Consumption
370 W
Housing Material
Stainless Steel
Fountain Actuation
Sensor
Refrigerant Type
R134A
Bottle Dispenser Actuation
Sensor
Includes Pet Bowl
Pet Bowl Not Included
Full Load Current
6 A
Bi-Level Field Adjustable
Not Bi-Level Field Adjustable
Number of Bubblers
1
Temperature Adjustment
Adjustable
Bubbler Finish
Chrome-Plated
Includes Water Chiller
Water Chiller Included
Maximum Flow Rate
1.1 gpm
Vandal Resistant Features
Vandal Resistant
Chiller Compatible
Chiller Compatible
Compatible Back Panel Manufacturer Part Number
SSBFUP
Filter Location
Bottom Panel Access
Power Source - TS Only
Electric Corded
Power Source - old
Electric Corded
Insert Weight
85 lb

Dimensions

Size
1-1/2"
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
39 1/16 in
Width
19 in
Depth
19 in
Overall Width
19 in
Overall Height
39 1/16 in
Mounting Hole Diameter
5/16 in
Overall Depth
18 3/8 in
Bottle Filler Depth
3 5/8 in
Drain Outside Diameter
1 1/4 in
Manufacturer Warranty Length
5 yr
Bottle Filler Width
17 7/8 in
Inlet Tube Outside Diameter
1/4 in
Fits Chest Size
Fillsafe Recognition Automatically Recognizes New Filter and Updates Led Light Back to Green, Green Ticker(TM) Informs User of Number of 20 oz Plastic Water Bottles Saved from Waste, Key Plastic Components are Manufactured with Silver Ion Antimicrobial Agent Helping to Provide Clean Stain- and Odor-Free Surfaces, Low-Energy Led Light Encourages Use Assists with Filling Dark Bottles and Illuminates in Dark Hallways, Quick Filter Change Wrapper Provides Easy Access to Filter from Front and Side of Cooler for Convenient and Efficient Filter Change in under a Minute

Description

The Elkay ezH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
