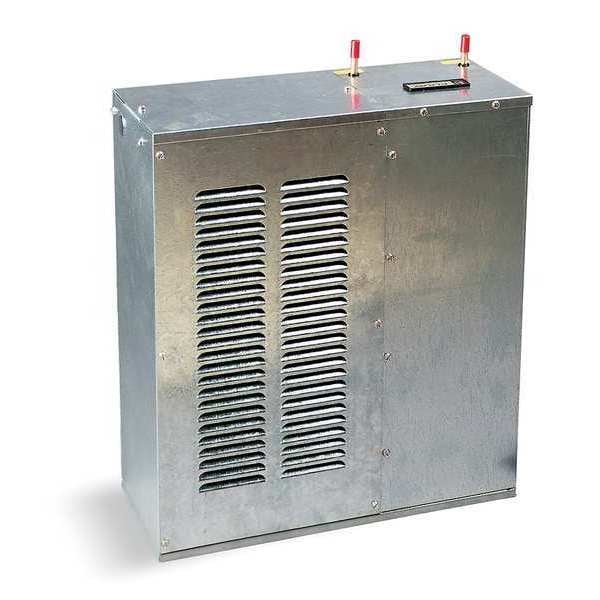

Elkay Remote Chiller Non-Filtered Refrigerated 10 GPH ER101Y - main

Remote Chiller Non-Filtered Refrigerated 10 GPH

  • Mfr # ER101Y

  • Zoro # G1912976

product price: $1,612.99
/ea
Free Shipping & Returns

Key Features

Cold Water Capacity
10.0 gph
Dispenser Tank Size
2.0 gal
Compressor HP - Dispensers
1/4 hp
Full Load Amps - Dispensers
5.8
Water Connection - Dispensers
3/8 in OD Tubing
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ER101Y
Zoro #
G1912976
UPC #
094902162317
Country of Origin
United States

Dimensions

Dispenser Tank Size
2.0 gal
Height
22 in
Depth
7 7/8 in
Width
19 1/2 in
Overall Width
19 1/2 in
Overall Height
22 in
Manufacturer Warranty Length
1 yr Electrical Components and Water System, 5 yr Refrigeration System
Inlet Tube Outside Diameter
3/8 in
Outlet Tube Outside Diameter
3/8 in
Overall Depth
7 7/8 in

Details

Cold Water Capacity
10.0 gph
Compressor HP - Dispensers
1/4 hp
Full Load Amps - Dispensers
5.8
Water Connection - Dispensers
3/8 in OD Tubing
Refrigerant
R134A (CFC Free)
Full Load Amps
5.8
Compliance
Buy American Act, CAN/CSA C22.2 120, NSF 372 (Lead Free), NSF 61, UL 399
Item
Two Station Water Chiller
Material
Galvanized steel
GPH
10.0
Voltage
115
Connection
3/8" O.D.Tubing
Dispenser Voltage
120V AC
Reserve Gallons
2.00
Compressor
1/4 HP
Features
Allows Flexible Installation Location of Refrigeration, Up to 15 ft from Dispensing Location, Converts Any Drinking Fountain into A Water Cooler, Fully Enclosed for Safe Mounting Anywhere, Hermetically Sealed Refrigeration System Provides Chilled Water, Ideal for Permanently Wired Applications, Large Capacity Tank and Increased Cooling Capacity for Demanding Applications
Standards
Buy American Act, CAN/CSA C22.2 No. 120, NSF 372 (Lead Free), NSF 61, UL 399
Compressor Horsepower
1/4 hp
Housing Finish
Galvanized
Maximum Supply Line Pressure
105 psi
Includes Water Filter
No
Power Consumption
490 W
Recommended Install Distance
Maximum 15 ft
For Station Type
Drinking Fountains
Housing Material
Steel
Refrigerant Type
R134A
Cooling Capacity
10 gph @ 50 Degrees F
Operating Voltage
115V AC
Minimum Supply Line Pressure
40 psi
Full Load Current
5.8 A
For Number of Stations
2
Temperature Adjustment
Adjustable
Maximum Flow Rate
10 gph
Ventilation Clearance
6 in Front, 3 in Rear, Installed in an Enclosure: 1 in Each Side, 3 in Rear and 3 in Above
Product Weight
74 lb
Environment
Indoor

Description

Remote water chillers convert standard drinking fountains into a water cooler.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
