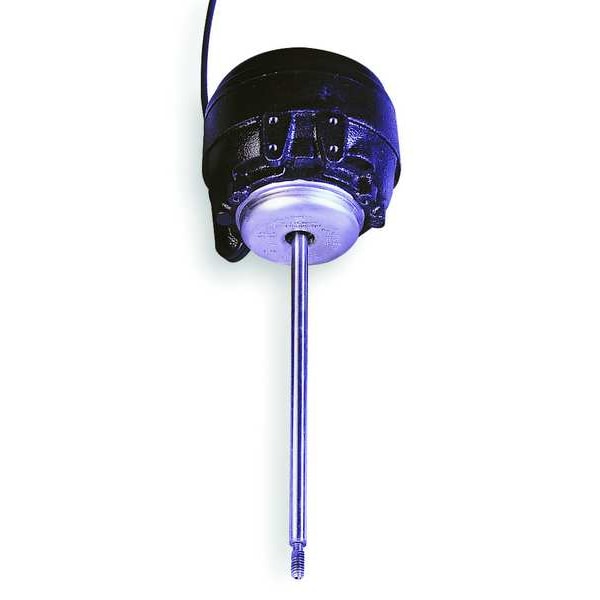

Unit Bearing Motor, 1/50 hp

  • Mfr # ESP-L15EMJR1B1
  • Zoro # G2714695
product price:
$
122.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
15 W
HP
1/50
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ESP-L15EMJR1B1
Zoro #
G2714695
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
5/16 in
Cord Length
22 in
Body Dia.
3 7/8 in
Length Less Shaft
3 9/16 in
Shaft Length
7 in
Shaft Diameter
5/16 in
Overall Length
10 1/2 in
Frame Size
Non-Standard
Body Diameter
3.9 in
Wire Rope Length
10 1/2 in
Length
10 1/2 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
15 W
HP
1/50
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CCWSE
Nameplate RPM
1,500
Frame
Non-Standard
Motor Service Factor
1
Ins. Class
A
Frame Material
Cast Iron
Motor Design
Shaded Pole
Full Load Amps
0.60 A
Hz
50/60 Hz
Motor Frame Material
Cast Iron
Plug Type
Round 2 Pin
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Rear/Double Foot
Item
Unit Bearing Motor
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Shaft Design
Threaded
Motor Mounting Position
All Angle
Motor Thermal Protection
Auto
Includes
#8-36 Mounting Screws
Motor Bearings
Unit
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Features
Beverage Dispensers
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Threaded
Full Load Current @ 60 Hz
0.60 A
Mounting Position
Horizontal/Vertical Shaft Down
Bearing Type
Unit
Sub Application
Unit Bearing
Number of Speeds
1
Insulation Class
A
Drive Type
Direct Drive
Wattage
15 W
Ambient Temperature - Maximum
40 Degrees C
Frequency
60/50 Hz
Product Type
Unit Bearing Motor

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/50 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, Non-Standard Frame, Output Watts 15 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot, Motor Frame Material Cast Iron
