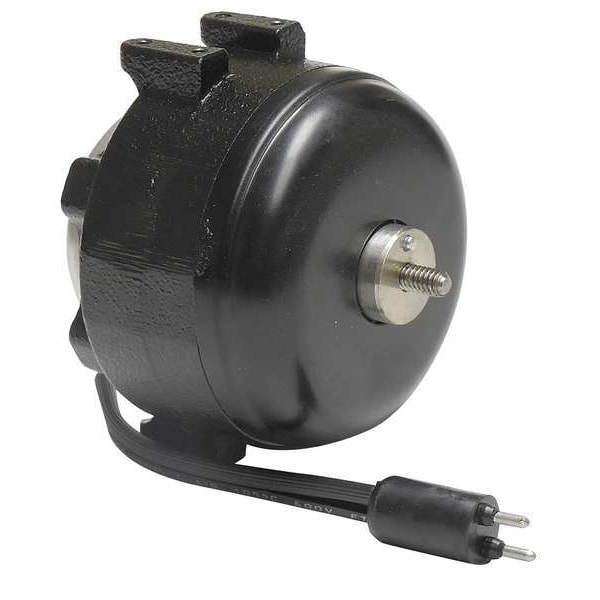

Unit Bearing Motor, 1/84 hp

  • Mfr # SPFBE91
  • Zoro # G5242562
product price:
$
42.49
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
9 W
HP
1/84
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SPFBE91
Zoro #
G5242562
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
3 13/32 in
Length Less Shaft
3 in
Cord Length
13 in
Shaft Length
13/32 in
Bolt Circle Dia.
2 13/16 in
Body Dia.
3 7/16 in
Shaft Dia.
1/4 in
Ring Dia.
2 81/100 in
Stud Size
#8-36
Shaft Diameter
1/4 in
Frame Size
Non-Standard
Bolt Circle Diameter
2 13/16 in
Body Diameter
3.4 in
Wire Rope Length
3 13/32 in
Length
3 13/32 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
9 W
HP
1/84
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,500
Frame
Non-Standard
Motor Mounting Position
All Angle
Hz
50/60 Hz
Motor Shaft Design
Threaded
Motor Application
HVAC/R
Motor Frame Material
Cast Iron
Motor Bearings
Unit
Full Load Amps
0.60 A
Standards
Meets UL and Canadian Standards for Safety
Max. Ambient Temp.
40 Degrees C
Includes
(4) #8-36 Screws, Fan Silencer And Speed Nut
Ins. Class
B
Frame Material
Cast Iron
Motor Enclosure Design
Totally Enclosed Air-Over
Item
Unit Bearing Motor
Motor Mounting Type
Rear/Foot
Motor Design
Shaded Pole
Motor Thermal Protection
Impedance
Plug Type
Round 2 Pin
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Features
Cool running, Quiet Operation, Thick Film Lubricating System for Long Life and Dependability
Stud Quantity
8
Sub Application
Unit Bearing
Full Load Current @ 60 Hz
0.60 A
Wattage
9 W
Insulation Class
B
Bearing Type
Unit
Shaft Design
Threaded
Frequency
60/50 Hz
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Product Type
Unit Bearing Motor
Drive Type
Direct Drive
Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/84 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, Non-Standard Frame, Output Watts 9 W, 60/50 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Impedance, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position All Angle
