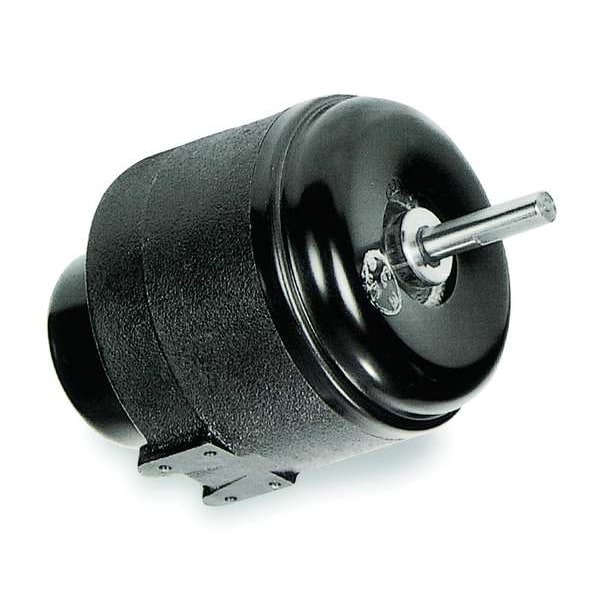

Unit Bearing Motor, 1/15 hp

  • Mfr # ESP-OL50EM1
  • Zoro # G1049991
product price:
$
105.99
/ea
Free Shipping & Returns

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
50 W
HP
1/15
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ESP-OL50EM1
Zoro #
G1049991
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
4 5/8 in
Overall Length
5 1/4 in
Body Dia.
3 7/8 in
Cord Length
22 in
Shaft Length
1 1/2 in
Shaft Dia.
3/8 in
Frame Size
Non-Standard
Shaft Diameter
3/8 in
Body Diameter
3.9 in
Wire Rope Length
5 1/4 in
Length
5 1/4 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
50 W
HP
1/15
RPM Range
1,401-1,500
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,500
Frame
Non-Standard
Ins. Class
A
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Motor Service Factor
1
Motor Enclosure Design
Open Air-Over
Motor Thermal Protection
Auto
Motor Application
HVAC/R
Motor Frame Material
Cast Iron
Frame Material
Cast Iron
Item
Unit Bearing Motor
Motor Shaft Design
Flat
Full Load Amps
1.7 A
Plug Type
Round 2 Pin
Motor Design
Shaded Pole
Motor Mounting Type
Rear/Foot
Motor Mounting Position
All Angle
Standards
CSA Certified, UL Recognized
Hz
60 Hz
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Mounting Holes
Tapped 8-36
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Air Over
Product Type
Unit Bearing Motor
Shaft Design
Flat
Application
Condenser Fan
Full Load Current @ 60 Hz
1.7 A
Wattage
50 W
Frequency
60 Hz
Drive Type
Direct Drive
Number of Speeds
1
Sub Application
Unit Bearing
Mounting Position
Horizontal
Insulation Class
A
Bearing Type
Sleeve

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 115V AC, 1.7 A Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position All Angle
