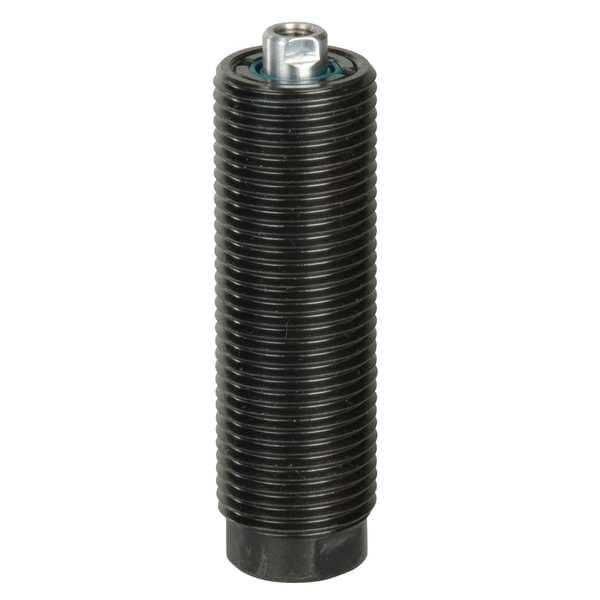

CST9251, 1950 lbs Capacity, 1.04 in Stroke, Single-Acting, Threaded Body, Hydraulic Cylinder
Mfr # CST9251
Zoro # G0534947
product price: $244.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Push Capacity @ 5000 psi
1,950 lbf
Stroke Length
1 in
Retracted Height
3.42 in
Body Thread
1"-12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CST9251
Zoro #
G0534947
UPC #
662005133260
Country of Origin
United States
Dimensions
Stroke Length
1 in
Retracted Height
3.42 in
Extended Height
4.43 in
Outside Dia.
1 in
Plunger Thread Size
1/4"-28
Details
Single Acting/Double Acting
Single Acting
Push Capacity @ 5000 psi
1,950 lbf
Body Thread
1"-12
Pressure Range
580 to 5000 psi
Type
Threaded Body
Material of Construction
Steel
Plunger Thread
1/4"-28 UN
Oil Capacity Push
0.39 cu in
Seal Material
Polyurethane/Buna N
Function
Single Acting
Stroke
0.98"
Item
Threaded Body Hydraulic Cylinder
Effective Area Push
0.39 sq. in.
Capacity @ 5000 PSI
1950 lb.
Body Material
Steel
Mounting Style
Threaded Body
Effective Push Area
0.39 sq in
Cylinder Type
Threaded Body
Description
Threaded Body Hydraulic Cylinder, Threaded Body, Threaded Body, Body Material Steel, Single Acting, Push Capacity @ 5000 psi 1,950 lbf, Stroke Length 1 in, Effective Push Area 0.39 sq in, Oil Capacity Push 0.39 cu in, Pressure Range 580 to 5000 psi, Extended Height 4.43 in, Retracted Height 3.42 in, Body Thread 1 In.-12, Plunger Thread Size 1/4 In.-28, Outside Dia. 1 in, Seal Material Polyurethane/Buna N
