  5. Hydraulic Cylinder Pressure Gauge, 0 to 15,000 psi psi, 4 in Dial, 1/4 in NPTF, Bottom Location

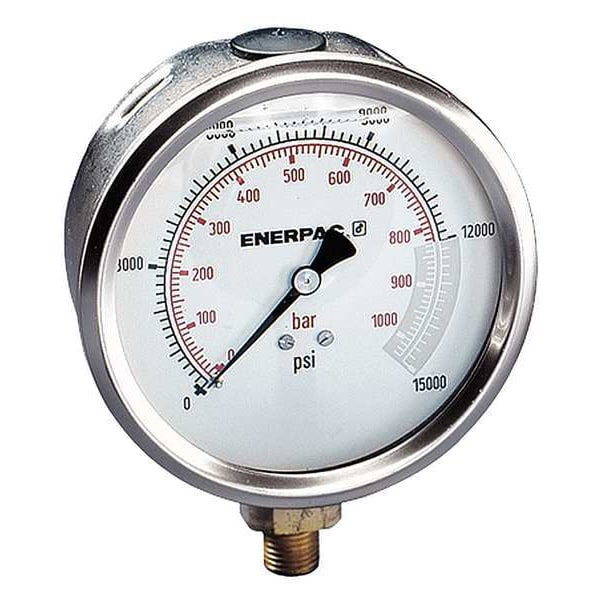

Enerpac Hydraulic Cylinder Pressure Gauge, 0 to 15,000 psi psi, 4 in Dial, 1/4 in NPTF, Bottom Location G4089L - main

Hydraulic Cylinder Pressure Gauge, 0 to 15,000 psi psi, 4 in Dial, 1/4 in NPTF, Bottom Location

  • Mfr # G4089L

  • Zoro # G5201515

product price:  $420.00
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPTF
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
G4089L
Zoro #
G5201515
UPC #
662005223428
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Length
4.8"
Case Depth
1.15 in
Nominal Dial Size
4 in
Case Diameter
4 in
Nominal Dial Diameter
4 in

Details

Item
Hydraulic Cylinder Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPTF
Application
Hydraulics
Gauge Case Material
Stainless Steel
Series
G
Lens Material
Glass
Primary Pressure Range
0 to 15,000 psi
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Includes
Pressure Equalizing Membrane, Safety Blow-Out Disk
Calibration Certificate Included
No
Gauge Application
General Purpose
Case Color
Metallic
Gauge Filled With
Glycerin
Gauge Mounting Method
Lower Mount
Smallest Graduation
20 bar; 200 psi
Case Material
Stainless Steel
Connection Type
NPTF
Includes Mounting Hardware
No
Adjustable Pointer
No
Compatible Brand and Series
ENERPAC V-91
Requires Adapter
Yes
Vibration Resistance
Liquid-Filled
Process Connection Gender
Male
Compatible Cylinder/Press
Cylinders and Presses
Scale Type
Dual
Primary Scale Minor Graduations
200
Secondary Scale Minor Graduations
20
Dial Color
White
Compatible Manufacturer Model Number
V-91
Secondary Pressure Range
0 to 1,000 psi
Case Construction
Corrosion Resistant
Freeze Resistant Movement
No
Compatible Gauge Adapter
Enerpac GA-3
Accuracy Scale
Full Scale
Secondary Scale Units
bar
Pressure Range Type
Pressure
Removable Bezel
No
Gauge Case Liquid
Glycerin
Field Fillable
No
Includes Vent Plug
No
Pressure Gauge Type
Hydraulic Cylinder Pressure Gauge
Maximum Pressure
15,000 psi
NEMA Enclosure Rating
4
IP Rating
IP66
Process Media Temperature - Maximum
158 Degrees F
Primary Scale Pressure Measurement - Maximum
15,000 psi
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
1,000 bar
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
20 Degrees F
Compatible Gauge Adapter Series
Enerpac GA-3
Case Liquid
Glycerin
Compatible Cylinder Series
Cylinders and Presses
Compatible with Manufacturer Part Number
V-91

Description

Pressure Gauge,0 to 15000 psi,4" Dial
