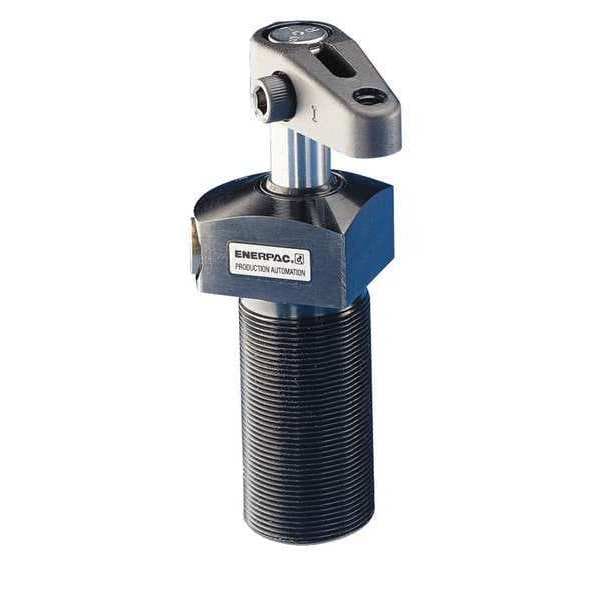

Hydraulic Cylinder, Threaded, 1250 lb.
Mfr # STRD51
Zoro # G4366050
product price:Â $549.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
1,250 lbf
Total Stroke
0.89 in
Clamping Stroke
0.39 in
Effective Area Clamped
0.28 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
STRD51
Zoro #
G4366050
UPC #
662005308613
Country of Origin
United States
Dimensions
Extended Height
5.33 in
Port Size
#4 SAE
Bolt Size
1-3/8"-18
Min. Hole Depth
0.65 in
Mounting Hole Dia.
1.38 in
Outside Dia.
1.88 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Threaded Body, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 1,250 lbf, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series ST, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 0.59 sq in, Oil Capacity Clamped 0.25 cu in, Oil Capacity Unclamped 0.52 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi
