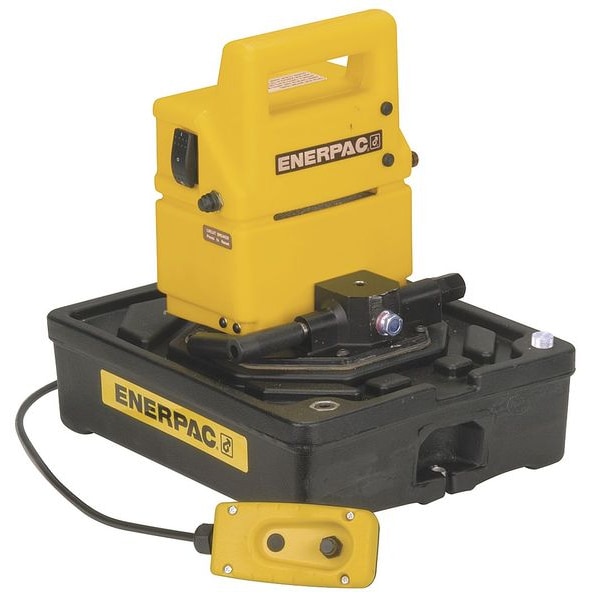

Hydraulic Pump, Electric, 0.5 hp, Universal Motor, 10,000 psi Max Pressure

  • Mfr # PUJ1401B

  • Zoro # G6955557

product price:
$
5,083.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Type
Electric
Reservoir Capacity (Cu.-In.)
231 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 100 PSI
200 cu in/min
Oil Displacement @ 700 PSI
70 cu in/min
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PUJ1401B
Zoro #
G6955557
UPC #
662005106585
Country of Origin
United States
Item
Hydraulic Pump
Type
Electric
Reservoir Capacity (Cu.-In.)
231 cu in
Reservoir Capacity (Gal.)
1 gal
Oil Displacement @ 100 PSI
200 cu in/min
Oil Displacement @ 700 PSI
70 cu in/min
Oil Displacement @ 1000 PSI
30 cu in/min
Oil Displacement @ 5000 PSI
25 cu in/min
Oil Displacement @ 10,000 PSI
20 cu in/min
Oil Displacement @ 0-200 PSI
200 cu in/min
HP
0.5 hp
Maximum Pressure
10,000 psi
Motor Type
Universal
Reservoir Material
Polyethylene
Voltage
115
Amps AC
9.5 A
Fluid Port NPT (In.)
3/8
Oil Displacement @ 200-10,000 PSI
20 to 200 cu in/min
dBA
85
Application
Single and Double Acting Cylinders
Control Pendant Voltage
Manual
Control Valve
4 Way/3 Position
Charger Input Voltage
115V AC
Oil Displacement @ 5000 psi
25 cu in/min
Displacement @ 700 psi
70 cu in/min
Displacement @ 200 psi
200 cu in/min
Displacement @ 100 psi
200 cu in/min
Reservoir Capacity
1 gal
Horsepower - Maximum
1/2 hp
Cylinder Compatibility
Double Acting
Duty Cycle
Intermittent
Frequency
50 Hz, 60 Hz
Nameplate Voltage
115V AC
Displacement @ 5000 psi
25 cu in/min
Media Intake Connection Type
NPTF
Control Valve Type
3-Position, 4-Way
Control Valve Function
Advance, Hold, Retract
Flow Rate - Maximum
20 cu in/min
Displacement @ 10,000 PSI
20 cu in/min
Sound Level - Maximum
85 dBA
Current
9.5 A
Displacement @ 1000 psi
30 cu in/min
Operating Pressure - Maximum
10,000 psi

Description

Hydraulic Pump, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115V AC, Duty Cycle Intermittent, Operating Pressure - Maximum 10,000 psi, Displacement @ 5000 psi 25 cu in/min, Displacement @ 10,000 PSI 20 cu in/min, Control Valve Type 3-Position, 4-Way, Reservoir Capacity 1 gal, Reservoir Material Polyethylene, Overall Height 14.7 in, Cylinder Compatibility Double Acting, Charger Input Voltage 115V AC, Control Pendant Size 10 ft, Control Pendant Voltage Manual
