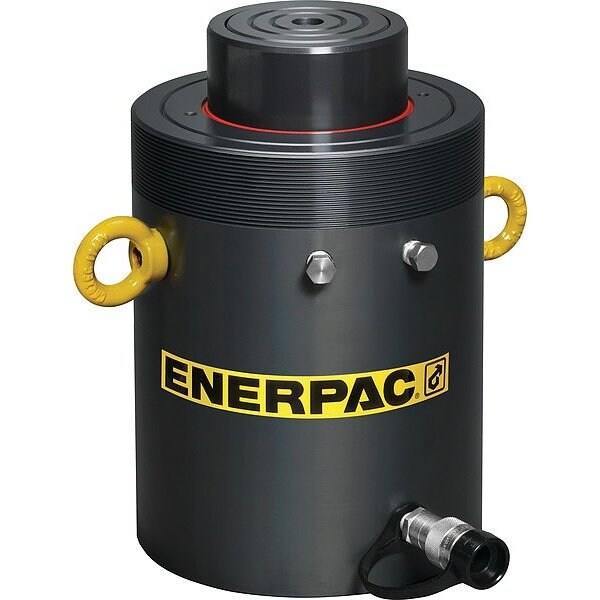

Hydraulic Ram, Steel, 566 lb

Mfr # HCG4004
Zoro # G622809996

17,774.99

Additional $300.00 delivery surcharge applies per item.

Zoro's best price: not eligible for any other offers or promotions

Key Features

Center Hole Dia.

M16 x 2 (Base)

Collar Thread Size

M350 x 3 mm

Outside Dia.

13.78 in

Includes

Collar Thread

Nominal Capacity

400 ton

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HCG4004
Zoro #: G622809996
UPC #: 662005391929
Country of Origin: United States

Dimensions

Center Hole Dia.: M16 x 2 (Base)
Collar Thread Size: M350 x 3 mm
Outside Dia.: 13.78 in
Base Bolt Circle Dia.: 11.81 in
Nominal Stroke Length: 4 in
Plunger Dia.: 8.66 in
Extended Height: 18.54 in
Retracted Height: 14.61 in
Stroke Length: 3 15/16 in
Base Mounting Thread Size: M16
Bore Dia.: 10.63 in

Details

Item: Hydraulic Ram
Includes: Collar Thread
Nominal Capacity: 400 ton
Cylinder Type: High Tonnage
Max. Push Capacity: 450 ton
Oil Capacity Push: 349.39 cu in
Body Material: Steel
Single Acting/Double Acting: Single Acting
Effective Push Area: 88.75 sq in
Max. Pressure: 10,150 psi
Weight: 566 lb

Description

Hydraulic Ram, Single Acting, High Tonnage, Steel, Nominal Capacity 400 ton, Max. Push Capacity 450 ton, Stroke Length 3 15/16 in, Nominal Stroke Length 4 in, Effective Push Area 88.75 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 349.39 cu in, Retracted Height 14.61 in, Extended Height 18.54 in, Outside Dia. 13.78 in, Plunger Dia. 8.66 in, Collar Thread Size M350 x 3 mm, Base Bolt Circle Dia. 11.81 in, Base Mounting Thread Size M16, Center Hole Dia. M16 x 2 (Base), Weight 566 lb

Restrictions

This item has been restricted from sale in the following states: CA
