  11. RW102, 11180 lbs Capacity, 2.18 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model
Enerpac

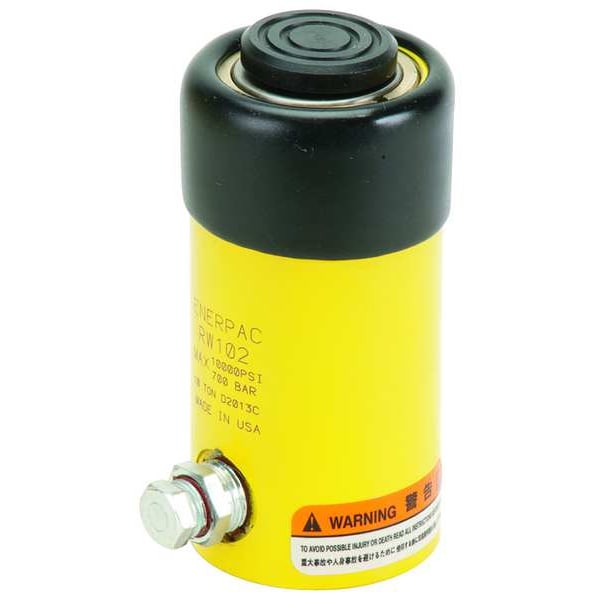

RW102, 11180 lbs Capacity, 2.18 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model

Enerpac RW102, 11180 lbs Capacity, 2.18 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model RW102
Tap to zoom
Hover or click to zoom
$411.40
  • Promotion Restriction: Not eligible for promotion
  • Center Hole Dia.: 1 1/2 in
  • Cylinder Type: General Purpose
See full product details
This item ships free.
Total: $411.40

Enerpac #RW102 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Center Hole Dia.: 1 1/2 in
  • Cylinder Type: General Purpose
  • Plunger Dia.: 1.38 in
  • Includes: Saddle
  • Single Acting/Double Acting: Single Acting
  • Weight Capacity: 10 tons
  • Stroke Length: 2 1/8 in
  • Thread Size: 5/16"-18
  • Extended Height: 7.01 in
  • Plunger Thread Size: 1"-8
  • Effective Area: 2.23 sq. in.
  • Body Material: Steel
  • Oil Capacity: 4.75 cu. in.
  • Retracted Height: 4.78 in
  • Bolt Circle Dia.: 1.56"
  • Item: Hydraulic Ram
  • Handle: No
  • Outside Dia.: 2.25 in
  • Max. Pressure: 10,000 psi
  • Oil Capacity Push: 4.75 cu in
  • Max. Push Capacity: 10 ton
  • Nominal Stroke Length: 2 in
  • Series: RW
  • Base Bolt Circle Dia.: 1.56 in
  • Effective Push Area: 2.23 sq in
  • Nominal Capacity: 10 ton
  • Country of Origin (subject to change): China

Description

  • Cylindrical models
  • High pressure design when additional force is required
  • Long stroke lengths in a compact design, well suited for welding applications
  • Collar mounting threads and base mounting holes allow flexible mounting options
  • Cylinders are provided with hardened saddles for additional plunger protection
  • Snap-in saddles are easily removed for adapting to different plunger devices
  • Chrome plated plunger with bronze upper and lower bearing provides a long cylinder life
