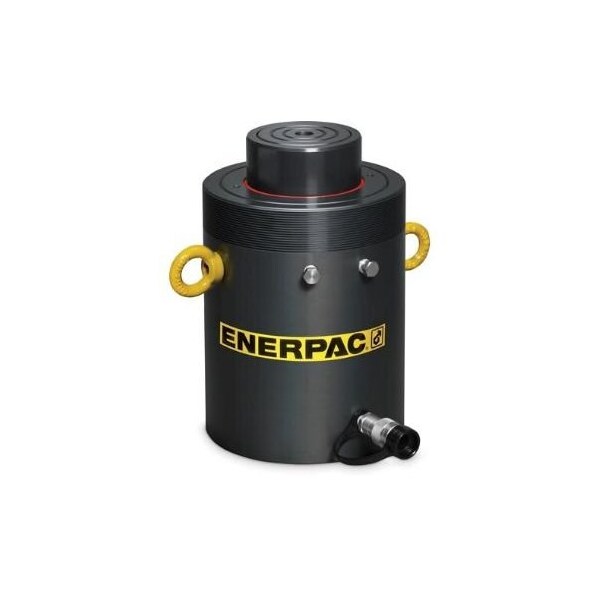

Hydraulic Ram, Steel, 833 lb

Mfr # HCG40012
Zoro # G922810098

25,341.99

Additional $300.00 delivery surcharge applies per item.

Zoro's best price: not eligible for any other offers or promotions

Key Features

Plunger Dia.

8.66 in

Base Mounting Thread Size

M16

Bore Dia.

10.63 in

Retracted Height

22.48 in

Single Acting/Double Acting

Single Acting

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: HCG40012
Zoro #: G922810098
UPC #: 662005391967
Country of Origin: United States

Dimensions

Plunger Dia.: 8.66 in
Base Mounting Thread Size: M16
Bore Dia.: 10.63 in
Retracted Height: 22.48 in
Outside Dia.: 13.78 in
Center Hole Dia.: M16 x 2 (Base)
Extended Height: 34.29 in
Base Bolt Circle Dia.: 11.81 in
Stroke Length: 11 13/16 in
Collar Thread Size: M350 x 3 mm
Nominal Stroke Length: 12 in

Details

Single Acting/Double Acting: Single Acting
Includes: Collar Thread
Max. Push Capacity: 450 ton
Item: Hydraulic Ram
Body Material: Steel
Weight: 833 lb
Cylinder Type: High Tonnage
Nominal Capacity: 400 ton
Max. Pressure: 10,150 psi
Oil Capacity Push: 1,048.18 cu in
Effective Push Area: 88.75 sq in

Description

Hydraulic Ram, Single Acting, High Tonnage, Steel, Nominal Capacity 400 ton, Max. Push Capacity 450 ton, Stroke Length 11 13/16 in, Nominal Stroke Length 12 in, Effective Push Area 88.75 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 1,048.18 cu in, Retracted Height 22.48 in, Extended Height 34.29 in, Outside Dia. 13.78 in, Plunger Dia. 8.66 in, Collar Thread Size M350 x 3 mm, Base Bolt Circle Dia. 11.81 in, Base Mounting Thread Size M16, Center Hole Dia. M16 x 2 (Base), Weight 833 lb

Restrictions

This item has been restricted from sale in the following states: CA
