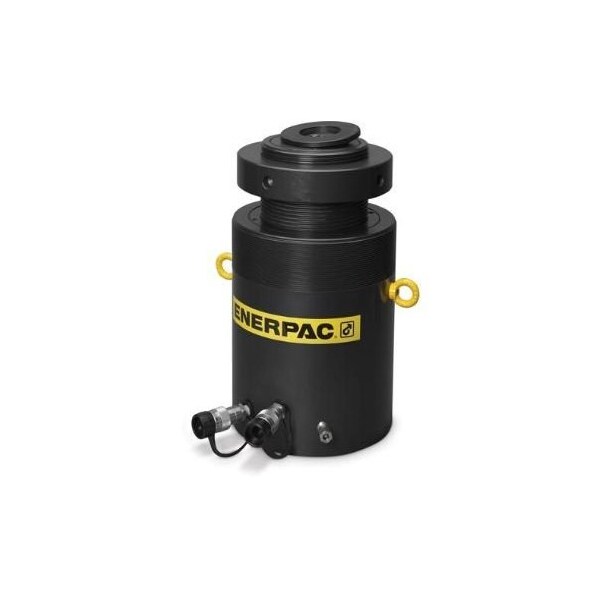

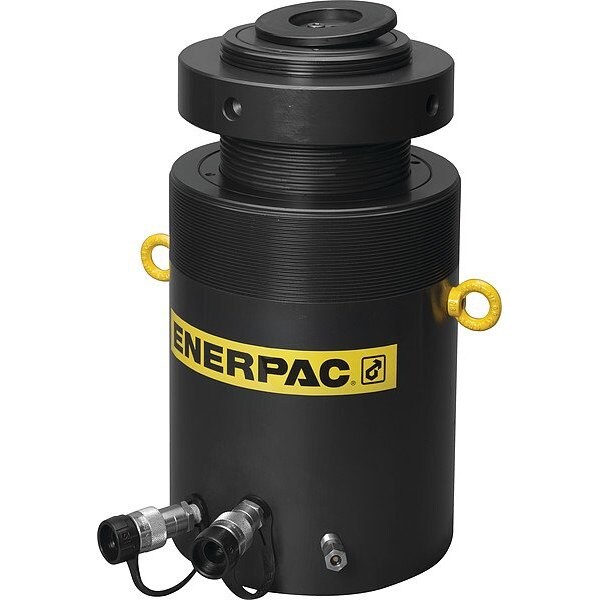

Lock Nut Hydraulic Ram, Steel, HCRL
Mfr # HCRL20010
Zoro # G822835559
product price:Â
$
19,409.99
/ea
Additional $225.00 delivery surcharge applies per item.
Zoro's best price: not eligible for any other offers or promotions
Key Features
Base Bolt Circle Dia.
8.46 in
Plunger Dia.
170 mm
Collar Thread Size
M260 x 3
Includes
Collar Thread
Cylinder Type
Lock Nut
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HCRL20010
- Zoro #
- G822835559
- UPC #
- -
- Country of Origin
- Netherlands
Dimensions
- Base Bolt Circle Dia.
- 8.46 in
- Plunger Dia.
- 170 mm
- Collar Thread Size
- M260 x 3
- Outside Dia.
- 10.24 in
- Nominal Stroke Length
- 10 in
- Plunger Thread Size
- 170 x 6 mm
- Extended Height
- 30.28 in
- Stroke Length
- 9 27/32 in
- Retracted Height
- 20.43 in
Details
- Includes
- Collar Thread
- Cylinder Type
- Lock Nut
- Nominal Capacity
- 200 ton
- Item
- Lock Nut Hydraulic Ram
- Body Material
- Steel
- Single Acting/Double Acting
- Double Acting
- Effective Push Area
- 44.31 sq in
- Max. Pressure
- 10,150 psi
- Oil Capacity Push
- 436.06 cu in
Description
Lock Nut Hydraulic Ram, Double Acting, Lock Nut, Steel, Nominal Capacity 200 ton, Stroke Length 9 27/32 in, Nominal Stroke Length 10 in, Effective Push Area 44.31 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 436.06 cu in, Retracted Height 20.43 in, Extended Height 30.28 in, Outside Dia. 10.24 in, Plunger Dia. 170 mm, Plunger Thread Size 170 x 6 mm, Collar Thread Size M260 x 3, Base Bolt Circle Dia. 8.46 in, Includes Collar Thread
Restrictions
This item has been restricted from sale in the following states:
CA
