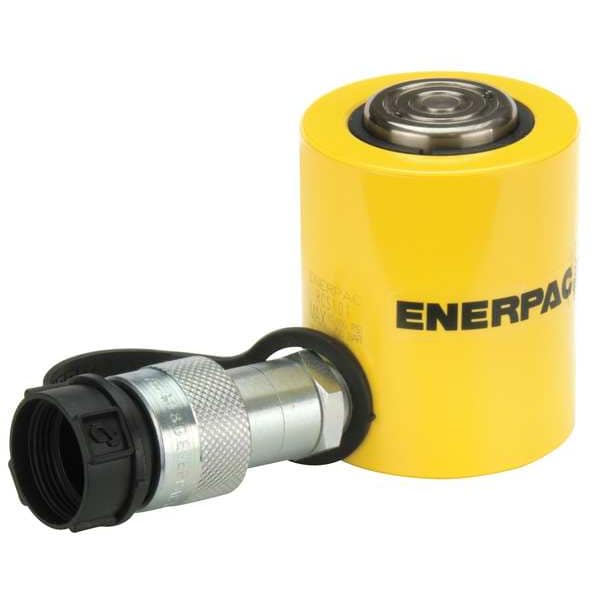

RCS101, 11.2 ton Capacity, 1.50 in Stroke, Low Height Hydraulic Cylinder

Enerpac RCS101,  11.2 ton Capacity,  1.50 in Stroke,  Low Height Hydraulic Cylinder RCS101
Tap to zoom
Hover or click to zoom
$497.25
  • Promotion Restriction: Not eligible for promotion
  • Thread Size: -
  • Center Hole Dia.: 1 1/2 in
See full product details
This item ships free.

Total: $497.25

Enerpac #RCS101 Specifications

  • Promotion Restriction: Not eligible for promotion
  • Thread Size: -
  • Center Hole Dia.: 1 1/2 in
  • Effective Area: 2.25 sq. in.
  • Max. Pressure: 10,000 psi
  • Body Material: Steel
  • Outside Dia.: 2.75 in
  • Item: Hydraulic Ram
  • Bolt Circle Dia.: 1.03"
  • Retracted Height: 3.47 in
  • Single Acting/Double Acting: Single Acting
  • Handle: No
  • Includes: Dust Cap, Female Coupler
  • Extended Height: 4.97 in
  • Plunger Dia.: 1.5 in
  • Oil Capacity: 3.35 cu. in.
  • Plunger Thread Size: M4
  • Cylinder Type: General Purpose
  • Stroke Length: 1 1/2 in
  • Weight Capacity: 10 tons
  • Nominal Stroke Length: 7/8 in
  • Max. Push Capacity: 10 ton
  • Series: RCS
  • Oil Capacity Push: 3.35 cu in
  • Base Bolt Circle Dia.: 1.03 in
  • Effective Push Area: 2.24 sq in
  • Nominal Capacity: 10 ton
  • Country of Origin (subject to change): China

Description

Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 1 1/2 in, Nominal Stroke Length 7/8 in, Effective Push Area 2.24 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 3.35 cu in, Retracted Height 3.47 in, Extended Height 4.97 in, Outside Dia. 2.75 in, Plunger Dia. 1.5 in, Plunger Thread Size M4, Base Bolt Circle Dia. 1.03 in, Center Hole Dia. 1 1/2 in, Series RCS, Includes Female Coupler, Dust Cap
