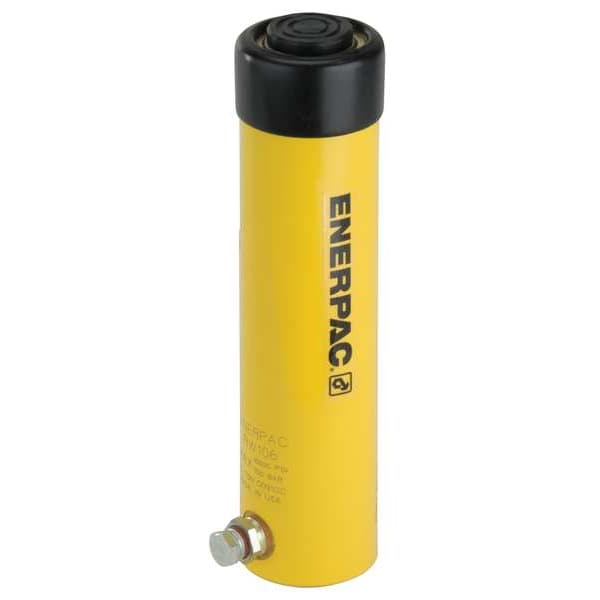

RW106, 11180 lbs Capacity, 6.11 in Stroke, General Purpose Hydraulic Cylinder, Cylindrical Model
Mfr # RW106
Zoro # G1961181
product price: $829.99
/ea
Free Shipping & Returns
Key Features
Handle
No
Includes
Saddle
Collar Thread Size
2-1/4"-14
Extended Height
15.88 in
Body Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RW106
Zoro #
G1961181
UPC #
662005310500
Country of Origin
China
Dimensions
Collar Thread Size
2-1/4"-14
Extended Height
15.88 in
Outside Dia.
2.25 in
Bolt Circle Dia.
1.56"
Plunger Dia.
1.5 in
Plunger Thread Size
1"-8
Center Hole Dia.
1 1/2 in
Thread Size
5/16"-18
Retracted Height
9.75 in
Stroke Length
6 in
Base Bolt Circle Dia.
1.56 in
Nominal Stroke Length
6 in
Description
Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 10 ton, Max. Push Capacity 10 ton, Stroke Length 6 in, Nominal Stroke Length 6 in, Effective Push Area 2.23 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 13.67 cu in, Retracted Height 9.75 in, Extended Height 15.88 in, Outside Dia. 2.25 in, Plunger Dia. 1.5 in, Plunger Thread Size 1 In.-8, Collar Thread Size 2-1/4 In.-14, Base Bolt Circle Dia. 1.56 in, Center Hole Dia. 1 1/2 in, Series RW, Includes Saddle
