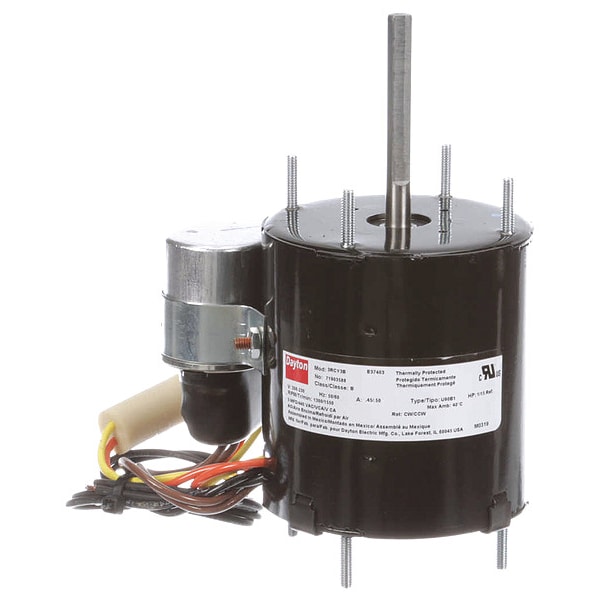

HVAC Motor, 1/15 HP, 1550 rpm, 208-230V, 3.3

  • Mfr # 71903588M
  • Zoro # G3072221
product price:
$
111.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71903588M
Zoro #
G3072221
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Dia.
5/16 in
Length Less Shaft
3 1/2 in
Shaft Length
2 1/2 in
Cord Length
20 in
Body Diameter
3.3 in
Overall Length
6 1/16 in
Frame Size
3.3
Shaft Diameter
5/16 in
Wire Rope Length
6 1/16 in
Length
6 1/16 in

Details

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/15
RPM Range
1,501-1,600
Motor Application
HVAC/R
Capacitor Required
Capacitor Included
Motor Thermal Protection
Auto
Motor Mounting Type
Ring/Stud
Stud/Base Mtg. Pattern
2 in x 2 in
Includes
3 MFD 440VAC Capacitor
Motor Shaft Design
Flat
No. of Speeds
1
Ins. Class
B
Motor Design
Permanent Split Capacitor
Motor Shaft Rotation
CW/CCW
Application
Replaces 1/15 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Frame
3.3
Number of Shafts
1
Hz
60/50 Hz
Full Load Amps
0.5-0.45 A
Phase
Single
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Mounting Pattern
2 x 2
Standards
CSA Certified, UL Recognized (E37403)
Motor Sub Application
Direct Drive Fan/Blower
Mounting Stud Location
4/Both Ends
Item
HVAC Motor
Motor Service Factor
1
Motor Bearings
Ball
Full Load Amps @ 50Hz
0.50-0.45 A
Service Factor @ 50Hz
1
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
208-230V AC
RPM @ 50Hz
1,550 RPM
Usable @ 208V
Usable at 208V
Mounting Stud Pattern
2 in x 2 in
HP @ 50Hz
1/15
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Mounting
Stud
Full Load Current @ 50 Hz
0.50-0.45 A
Nameplate RPM @ 50 Hz
1,550 RPM
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Bearing Type
Ball
Frequency
60/50 Hz
Nameplate Horsepower @ 50 Hz
1/15 hp
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 50 Hz
1
Shaft Design
Flat
Full Load Current @ 60 Hz
0.5-0.45 A
Wattage
49 W
Sub Application
General Purpose
Frame Material
Steel
Nameplate Voltage @ 50 Hz
208-230V AC

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.5-0.45 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
