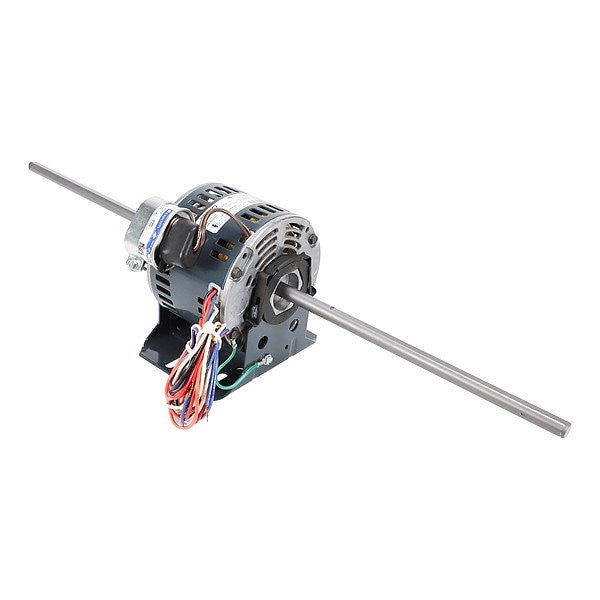

Motor, 1/10 hp, OEM Replacement Brand: Fasco Replacement For: D291, D291A

  • Mfr # D291A

  • Zoro # G615852329

product price:  $305.99
/ea
Free Shipping & Returns

Key Features

Frame
42
HP
1/10 hp
Motor Application
Air Conditioner
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D291A
Zoro #
G615852329
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
10 7/16 in
Body Dia.
5 in
Overall Length
24 5/8 in
Shaft Diameter
1/2 in
Body Diameter
5 in
Frame Size
42

Details

Frame
42
HP
1/10 hp
Item
Room Air Conditioner Motor
Motor Application
Air Conditioner
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Resilient Base
Motor Shaft Rotation
CWSE
Motor Sub Application
Fan Coil Air Conditioning, Heating Unit
Motor Thermal Protection
Auto
Nameplate RPM
1,050
No. of Speeds
4
Number of Shafts
2
OEM Replacement Brand
Fasco
Phase
Single
RPM Range
1,001-1,100
Voltage
115V AC
Motor Bearings
Ball
Replacement For
D291, D291A
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Full Load Amps
0.7 A, 1.0 A, 1.4 A, 2.2 A
Capacitor Required
Capacitor Included
Standards
CSA, UL Listed
Motor Service Factor
1
Application
Room Air Conditioner
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Voltage Compatibility
115V AC
Motor Frame Material
Rolled Steel
Weight
10.73 lb
Duty
Continuous
Number of Speeds
4
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Compatible Brand
Fasco
Sub Application
Room Air Conditioner, Unit Heater
Product Type
Room Air Conditioner Motor
Full Load Current @ 60 Hz
0.7 A, 1.0 A, 1.4 A, 2.2 A
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball

Description

Room Air Conditioner Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp, 1/15 hp, 1/25 hp, 1/40 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 4, Voltage 115V AC, Full Load Amps 0.7 A, 1.0 A, 1.4 A, 2.2 A, 42 Frame, OEM Replacement Brand Fasco, Replacement For D291, D291A, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous
