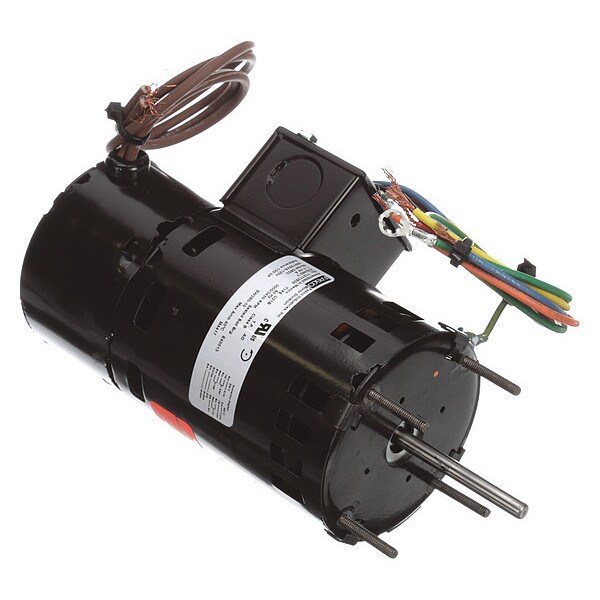

Motor, 1/20 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: JB1R040

  • Mfr # D653

  • Zoro # G4333896

product price:  $266.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/20 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D653
Zoro #
G4333896
UPC #
818508021126
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4"
Shaft Length
2.2"
Length Less Shaft
6 1/2 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
8.78"
Stud Size
#8-32
Wire Rope Length
8 3/4 in
Body Diameter
3.4 in
Shaft Diameter
1/4 in
Frame Size
3.3
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 13/16 in

Details

Frame
3.3
HP
1/20 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3430/3000 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Rheem/Ruud
Phase
1
RPM Range
3001-3600
Voltage
230/460V
Motor Bearings
Ball
Replacement For
JB1R040
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.1/0.44A
Capacitor Required
No
Standards
UL Recognized
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Conduit Box Position
F2
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
5 lb
Conduit Box Location
Exterior
Motor Frame Material
Steel
Number of Speeds
1
Sub Application
Condenser Fan
Bearing Type
Ball
Compatible Manufacturer Part Number
JB1R040
Shaft Design
Flat
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Product Type
Condenser Fan Motor
Compatible Brand
Rheem/Ruud
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Full Load Current @ 60 Hz
1.1/0.44 A

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 3430 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.1/0.44 A, 3.3 Frame, OEM Replacement Brand Rheem/Ruud, Replacement For JB1R040, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
