Shop FASCO

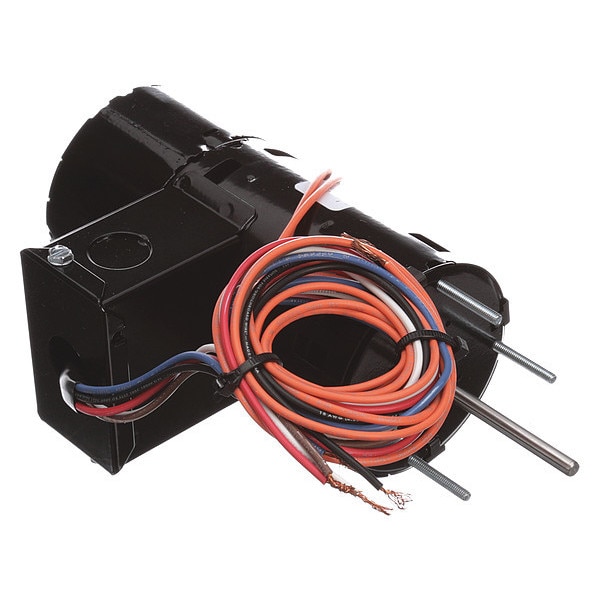

Motor, 1/15 HP, OEM Replacement Brand: Carrier/BDP Replacement For: HC24AU600

  • Mfr # D456
  • Zoro # G4333975
product price:
$
194.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/15 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D456
Zoro #
G4333975
UPC #
818508020013
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4"
Shaft Length
2-1/2"
Length Less Shaft
6 9/16 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
9.42"
Stud Size
#8-32
Body Diameter
3.4 in
Shaft Diameter
1/4 in
Frame Size
3.3
Wire Rope Length
9 7/16 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
2 13/16 in
Length
9 7/16 in

Details

Frame
3.3
HP
1/15 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3000 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Carrier/BDP
Phase
1
RPM Range
1801-3000
Voltage
115V AC, 230V AC
Motor Bearings
Ball
Replacement For
HC24AU600
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
2.0/1.0A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
50/60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC, 230V AC, 240V AC
Motor Frame Material
Steel
Conduit Box Location
Exterior
Conduit Box Position
F2
Usable @ 208V
Not Usable at 208V
Weight
5 lb
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Insulation Class
B
Motor Enclosure Type
Open Air Over
Compatible Manufacturer Part Number
HC24AU600
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Frame Material
Steel
Full Load Current @ 60 Hz
2.0/1.0 A
Nameplate Service Factor @ 60 Hz
1
Compatible Brand
Carrier/BDP
Product Type
Condenser Fan Motor
Bearing Type
Sleeve

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.0/1.0 A, 3.3 Frame, OEM Replacement Brand Carrier/BDP, Replacement For HC24AU600, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
