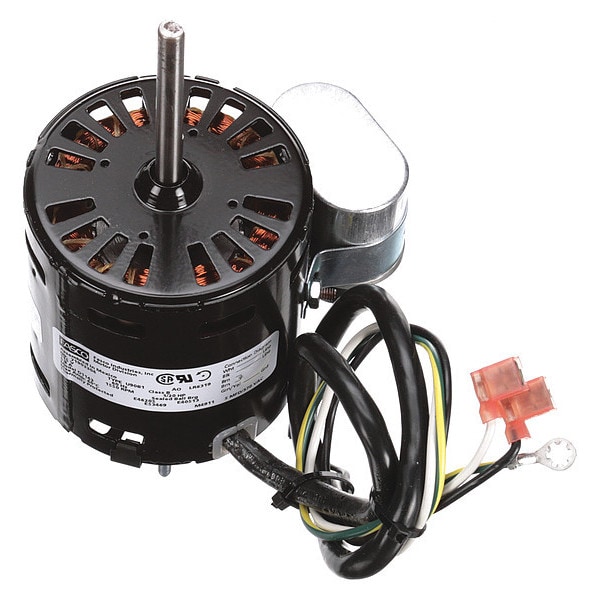

Motor, 1/20 HP, OEM Replacement Brand: Manitowoc Ice
Mfr # D1143
Zoro # G3732009
product price: $133.99
/ea
Free Shipping & Returns
Key Features
Frame
3.3
HP
1/20 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
D1143
Zoro #
G3732009
UPC #
818508022093
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/16"
Shaft Length
2.84"
Length Less Shaft
3 9/16 in
Bolt Circle Dia.
2-13/16"
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr.
Overall Length
6.4"
Stud Size
8-32 x 1/2"
Mounting Stud Length
1/8 in
Description
OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 0.9 A, 3.3 Frame, OEM Replacement Brand Manitowoc Ice, Replacement For Fasco Mfr. No. 71902830, Manitowoc Ice Mfr. No. 2008243, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW
