Shop FASCO

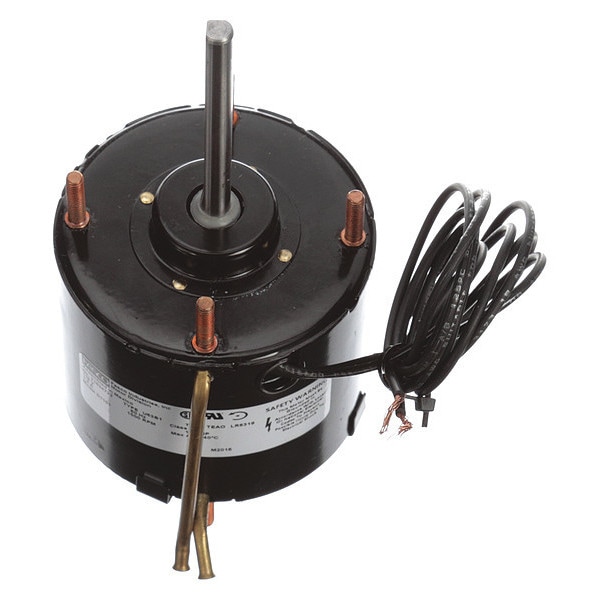

Motor, 1/40 HP, OEM Replacement Brand: Economite/Mid-Contienent Gas Burner Replacement For: AA2P026N

  • Mfr # D1151

  • Zoro # G4334410

product price:
$
150.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/40 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D1151
Zoro #
G4334410
UPC #
818508022130
Country of Origin
Mexico
Frame
3.3
HP
1/40 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Counterclockwise Shaft End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Automatic
Nameplate RPM
1500 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Economite/Mid-Contienent Gas Burner
Phase
1
RPM Range
1401-1500
Voltage
115V
Motor Bearings
Sleeve
Replacement For
AA2P026N
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.2A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Double Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4 in x 4 in
Voltage Compatibility
115V AC, 120V AC
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Weight
4 lb
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Compatible Brand
Economite/Mid-Contienent Gas Burner
Insulation Class
B
Frame Material
Steel
Full Load Current @ 60 Hz
1.2 A
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Sub Application
Condenser Fan
Shaft Design
Double Flat
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Compatible Manufacturer Part Number
AA2P026N

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.2 A, 3.3 Frame, OEM Replacement Brand Economite/Mid-Contienent Gas Burner, Replacement For AA2P026N, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE
