Shop FASCO

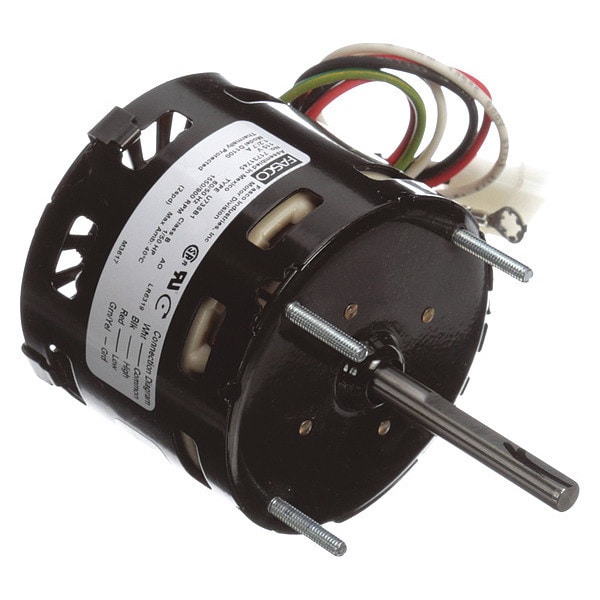

Motor, 1/50 HP, OEM Replacement Brand: Loren Cook Replacement For: 7173-1580

  • Mfr # D1100

  • Zoro # G4334596

product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/50 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D1100
Zoro #
G4334596
UPC #
815585028147
Country of Origin
Mexico
Frame
3.3
HP
1/50 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
1550/900 rpm
No. of Speeds
2
Number of Shafts
1
OEM Replacement Brand
Loren Cook
Phase
1
RPM Range
1501-1600
Voltage
115V
Motor Bearings
Sleeve
Replacement For
7173-1580
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.2/0.70A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Mounting Stud Pattern
4" x 4"
Voltage Compatibility
115V AC, 120V AC
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Weight
3 lb
Number of Speeds
2
Full Load Current @ 60 Hz
1.20/0.70 A
Bearing Type
Sleeve
Sub Application
Condenser Fan
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Compatible Manufacturer Part Number
7173-1580
Compatible Brand
Loren Cook
Motor Enclosure Type
Open Air Over

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/50 hp HP, Nameplate RPM 1,550/900 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 1.20/0.70 A, 3.3 Frame, OEM Replacement Brand Loren Cook, Replacement For 7173-1580, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over
