Shop FASCO

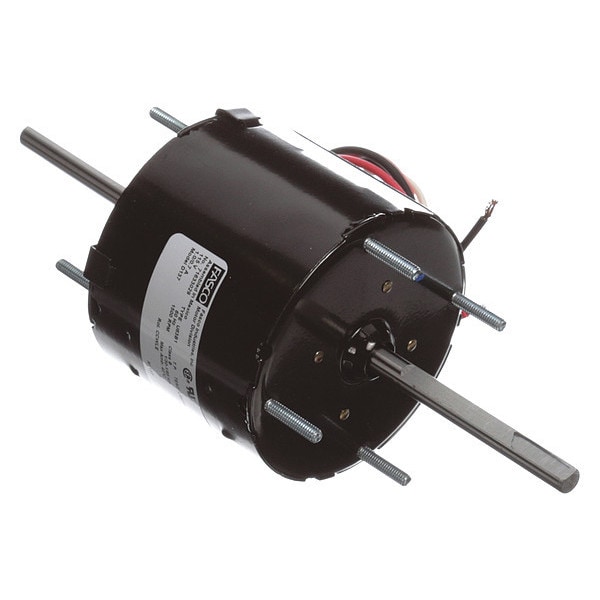

Motor 3.3 In, 1/30-1/65 HP, 115V, CCW/LE

  • Mfr # D137

  • Zoro # G6131377

product price:  $148.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
2
HP
1/30, 1/65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D137
Zoro #
G6131377
UPC #
663001024279
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/8 in
Length Less Shaft
3 5/16 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Overall Length
8 7/8 in
Stud Size
#8-32
Lead Length
15 in
Bolt Circle Dia.
2 7/8 in
Bolt Circle Diameter
2 7/8 in
Shaft Diameter
5/16 in
Frame Size
3.3
Body Diameter
3.3 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
8 7/8 in

Details

Voltage
115V AC
Nameplate RPM
1,500
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
2
HP
1/30, 1/65
RPM Range
1,401-1,500
Motor Mounting Type
Ring/Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Mounting Pattern
2-7/8 x 2-7/8
Motor Sub Application
OEM Replacement
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Full Load Amps
1.0/0.70 A
Motor Shaft Rotation
CWSE
Duty
Continuous
Ins. Class
B
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Application
HVAC/R
Motor Design
Shaded Pole
Hz
60 Hz
Standards
CSA Certified, UL Recognized
Number of Shafts
2
Motor Application
HVAC/R
Frame
3.3
Mounting Stud Location
4/Both Ends
Item
OEM Replacement Motor
No. of Speeds
2
Capacitor Required
Capacitor Not Required
Weight
4 lb
Motor Frame Material
Steel
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Mounting Holes
(8) #8-32
Motor Mounting Position
All Angle
Mounting
Stud
Insulation Class
B
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Drive Type
Direct Drive
Sub Application
General Purpose
Wattage
20 W
Nameplate Service Factor @ 60 Hz
1
Product Type
OEM Replacement Motor
Bearing Type
Sleeve
Shaft Design
Flat
Full Load Current @ 60 Hz
1.0/0.70 A
Motor Enclosure Type
Totally Enclosed Air-Over

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp, 1/65 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 2, Voltage 115V AC, 1.0/0.70 A Full Load Amps, 3.3 Frame, Output Watts 20 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
