Shop FASCO

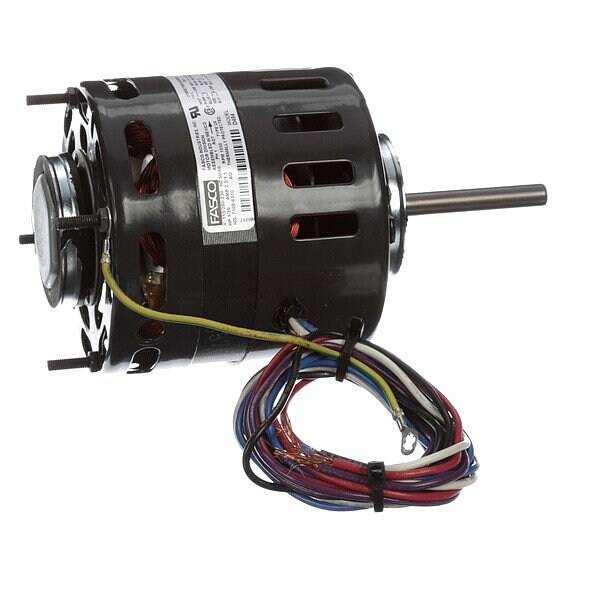

Refrigeration Motor, 1/20 hp

  • Mfr # D484
  • Zoro # G510863284
product price:
$
185.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Phase
Single
HP
1/20
RPM Range
1,501-1,600
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D484
Zoro #
G510863284
UPC #
818508020242
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8 in
Shaft Length
3 5/32 in
Overall Length
7 15/16 in
Length Less Shaft
5 13/32 in
Bolt Circle Dia.
3 1/2 in
Body Dia.
4 3/8 in
Lead Length
31 in
Frame Size
4.4
Body Diameter
4.4 in
Shaft Diameter
3/8 in
Bolt Circle Diameter
3 1/2 in
Wire Rope Length
7 15/16 in
Length
7 15/16 in

Details

Item
Refrigeration Motor
Motor Design
Shaded Pole
Phase
Single
HP
1/20
RPM Range
1,501-1,600
No. of Speeds
1
Voltage
115V AC, 208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
4.4
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud, Ring
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,550
Motor Application
HVAC/R
Motor Sub Application
Refrigeration
Voltage Compatibility
115V AC, 208V AC to 230V AC
Mounting Stud Location
4/Opposite Shaft End
Weight
5.6 lb
Voltage @ 50Hz
115/208-230V AC
Standards
CSA, UL
HP @ 50Hz
1/20
Service Factor @ 50Hz
1
RPM @ 50Hz
1,550
Hz
50 Hz
Includes
#10-32 Extended Studs, Resilient Rings
Full Load Amps
2.2/1.1 A
Motor Shaft Design
Flat
Motor Bearings
Sleeve
Ins. Class
A
Usable @ 200V
Not Usable at 200V
Motor Service Factor
1
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
2.2/1.1 A
Number of Shafts
1
Motor Enclosure Type
Open Air Over
Bearing Type
Sleeve
Nameplate Horsepower @ 50 Hz
1/20 hp
Nameplate Service Factor @ 50 Hz
1
Application
Fan/Blower
Nameplate Voltage @ 50 Hz
115V AC
Mounting Position
Horizontal
Product Type
Refrigeration Motor
Ambient Temperature - Maximum
40 Degrees C
Frequency
60/50 Hz
Full Load Current @ 60 Hz
2.2/1.1 A
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Drive Type
Direct Drive
Nameplate RPM @ 50 Hz
1,550 RPM
Number of Speeds
1
Sub Application
Refrigeration
Insulation Class
A
Full Load Current @ 50 Hz
2.2/1.1 A
Wattage
40 W

Description

Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.2/1.1 A Full Load Amps, 4.4 Frame, Output Watts 40 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
