  9. Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/4 HP, 3/4" Inlet

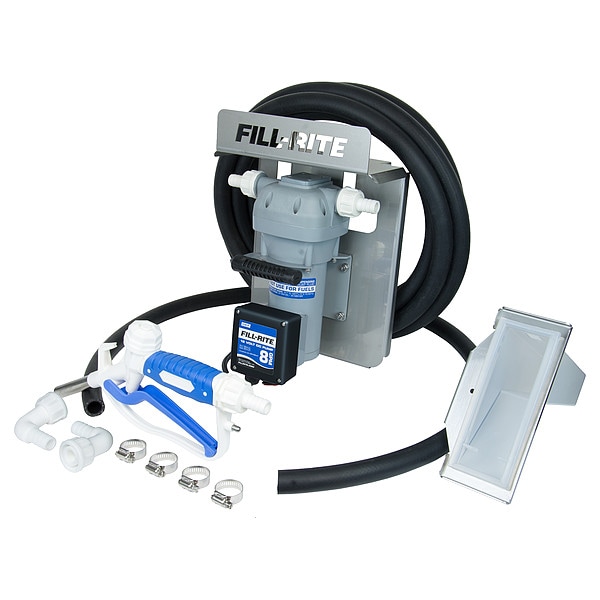

Fill-Rite Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/4 HP, 3/4" Inlet DF012CMN520 - main

Electric Operated Drum Pump, 12VDC, 8 Max. Flow Rate , 1/4 HP, 3/4" Inlet

  • Mfr # DF012CMN520

  • Zoro # G5535813

product price: $654.99
/ea
Free Shipping & Returns

Key Features

For Use With
Diesel Exhaust Fluid
Includes
(2) 1 in BSPP x 3/4 in Hose Barb 90 Degrees Elbows, (2) 1 in BSPP x 3/4 in Hose Barb Straight Fittings, (4) Worm Gear Hose Clamps, Nozzle Boot with Bracket
Max. Viscosity
40 cps
Motor Type
DC Permanent Magnet
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DF012CMN520
Zoro #
G5535813
UPC #
089404245866
Country of Origin
United States

Dimensions

Outlet Size
3/4"
Manufacturers Warranty Length
2 yr.
Suction Tube Length
60 in
Inlet Size
3/4"
Hose Dia.
3/4"
Overall Length
15 1/4 in
Overall Height
7-13/64"
Overall Width
7-13/64"
Hose Length
20 ft
Cord Length
72 in
Discharge Tube Length
20 ft.
Height Above Container
2 1/2 in
Spout Length
16 in
For Container Size
55 gal, 275 gal, 330 gal
Hose Outside Dia.
1 in
Hose Inside Dia.
3/4 in
Spout Discharge Size
1/2 in

Details

For Use With
Diesel Exhaust Fluid
Item
Electric Operated Drum Pump
Includes
(2) 1 in BSPP x 3/4 in Hose Barb 90 Degrees Elbows, (2) 1 in BSPP x 3/4 in Hose Barb Straight Fittings, (4) Worm Gear Hose Clamps, Nozzle Boot with Bracket
Max. Viscosity
40 cps
Motor Type
DC Permanent Magnet
Power Source
Electric
Wetted Materials
EPDM, Nylon, Santoprene, Stainless Steel
Voltage
12VDC
Motor Enclosure
TE
Metered
No
Motor RPM
2,800 RPM
Seal Material
EPDM
Adapter Material
Nylon
Duty Cycle
Intermittent
Suction Tube Type
Flexible Hose
Gasket Material
EPDM
Max. Specific Gravity
1.1
Max. Liquid Temp.
140 Degrees F
Adapter Type
3/4" HB
HP
1/4
Max. Temp.
140 Degrees F
RPM
2800
Features
Integral Pulsation Dampener, Smooth Flow
Amps
22.0
Pump Design
Rugged Multi-Diaphragm
Phase
1
Pressure Range
38 psi
Seal Type
O-ring
Self-Priming
Yes
Bearing Type
Ball
Duty
Intermittent
Pump Body Material
Stainless Steel
Shaft Material
Stainless Steel
GPM
8
Application
Dispensing Diesel Fuel
Hose Material
EPDM
Nozzle Material
Poly
Bypass Valve
Internal
Housing Material
EPDM, Nylon, Santoprene(TM), Stainless Steel
Max. Pressure
38 psi
Max. Head
16 ft.
Suction Lift
6 ft.
Inlet
3/4" MBSPP
Nozzle Type
Automatic
Max. GPM for Water
8
Agency Compliance
ETL
Type
Electric
Discharge Connection Type
BSP
Discharge Tube Outlet ID
3/4 in
Spout Connection Type
BSP
Discharge Tube Outlet OD
1 in
Compatible Chemicals
DEF
Suction Tube ID
3/4 in
Suction Tube OD
1 in
Runs Dry
Yes
Variable Speed
No
Hose Tube Material
EPDM
Includes Nozzle
Yes
Nozzle Operation
Manual
Includes Discharge Hose
Yes
Max. Fluid Temp.
120 Degrees F
Suction Tube Material
EPDM
Max. Flow Rate
10 gpm
For Media Type
DEF
Noise Level
80 db
Diesel Exhaust Fluid Compatible
Yes
Includes Spout
Yes
Motor HP
1/4 hp
Housing Material - Pumps
Polypropylene
Pump Connection Type
BSP
Hose Cover Material
EPDM
Spout Material
Poly
Min. Fluid Temp.
15 Degrees F
For Container Type
Drum, Tote
Full Load Amps
22.0 A
Includes Bung Adapter
No
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Fertilizers, Formic Acid, Fresh Water, Fungicides, Gasoline, Glycerin, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Food Grade
No
Pump Connection ID
3/4 in
Number of Phases
1
Includes Suction Tube
Yes
Max. Head Pressure
38 psi
Pump Connection OD
1 in
Max. Head - Pumps
30 ft
Max. Outlet Pressure
38 psi
Grease
NT
Rated Voltage
12V DC
Gear Lube
NT

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 38 psi, Max. Outlet Pressure 38 psi, For Use With Diesel Exhaust Fluid, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 20 ft, Suction Tube Length 60 in, Cord Length 72 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals DEF

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
