Shop FILL-RITE

Fuel Transfer Pump, 12V DC, 15 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in MNPT Inlet

  • Mfr # FR1211H

  • Zoro # G4988094

product price:
$
722.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Farming; Construction
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR1211H
Zoro #
G4988094
UPC #
089404223109
Country of Origin
United States

Dimensions

Inlet Size
1 in MNPT
Hose Length
12 ft
Suction Tube Length
34 1/2 in
Outlet Size
1 in FNPT
Manufacturers Warranty Length
2 yr
Overall Height
18 in
Hose Dia.
3/4 in
Overall Length
18 1/4 in
Overall Width
18 5/8 in
Power Cord Length
18 ft
Cord Length
18 ft
Hose Outside Dia.
3/4 in
For Container Size
35 gal, 55 gal, 275 gal, 500 gal
Spout Length
6 in
Hose Inside Diameter
3/4 in
Hose Outside Diameter
1 1/8 in
Adapter Connection Diameter
2 in
Spout Discharge Size
3/4 in
Wire Rope Length
18 1/4 in
Length
18 1/4 in

Details

Voltage
12V DC
Application
Farming; Construction
HP
1/4
Housing Material
Cast Iron
GPM
15 gpm
Seal Material
Carbon/Ceramic
RPM
2600
Pump Design
Rotary Vane
Self-Priming
Yes
Seal Type
O-ring
Max. Viscosity
39.5 SUS
Item
Electric Drum Pump
Pressure Range
0 psi to 16 psi
Bearing Type
Sealed Ball
Amps AC
4.9 A
Bypass Valve
Internal
Includes
Cable
Duty Cycle
30 Minutes On/30 Minutes Off
Metered
Yes
Nozzle Type
Manual
For Use With
Bio-Diesal up to B20 E15. Kerosene, Diesel, Gasoline
Nozzle Material
Aluminum
Standards
cULus
Transfer Pump Application
Agriculture, Construction, Farming
Features
Explosion Proof Motor, Thermal Overload Protection
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Motor Enclosure
Explosion Proof
Agency Compliance
cULus
Wetted Materials
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Type
Permanent Magnet
Max. Head - Pumps
37 ft
Housing Material - Pumps
Cast Iron
Motor RPM
2,600 RPM
Pump Connection Type
NPT
Explosion Proof
Yes
Thermal Protection
Yes
Rated Voltage
12 V DC
Includes Nozzle
Yes
Mount Type
Bung
Includes Suction Tube
Yes
Max. Outlet Pressure
16 psi
For Media Type
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Meter Type
Mechanical
Meter Unit Of Measure
Gallons
Motor HP
1/4 hp
Nozzle Operation
Manual
Full Load Amps
26.0 A
Discharge Connection Type
FNPT
Nozzle Fluid Compatibility
Diesel
Runs Dry
Yes
Power Source
Corded Electric
Compatible Chemicals
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Includes Discharge Hose
Yes
Max. Head Pressure
16 psi
Max. Flow Rate
15 gpm
Variable Speed
No
Includes Spout
Yes
Suction Tube OD
1 5/16 in
Maximum Head Pressure
16 psi
Adapter Connection Standard
MNPT
Pump Technology
Vane
Hose Tube Material
Nitrile
Includes Bung Adapter
Yes
For Container Type
Tank
Pump Connection ID
3/4 in
Hose Cover Material
Neoprene
Meter Type Included
Mechanical
Spout Material
Aluminum
Motor Horsepower
1/4 hp
Motor Speed
2,600 RPM
Container Type Included
Drum
Container Cover Type Included
No Cover Included
Full Load Current
26 A
Maximum Viscosity
39.5 SUS
Maximum Head
37 ft
Suction Tube Material
Steel
Static Protection
Grounding Line Included
Maximum Outlet Pressure
16 psi
Chemical Compatibility
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Maximum Fluid Temperature
150 Degrees F
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Maximum Flow Rate
15 gpm
Includes Follower Plate
No Follower Plate Included
Hazardous Location Class
Class I/Division 1
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Pump Connection OD
1 1/8 in
Minimum Fluid Temperature
-40 Degrees F
Suction Tube ID
1 3/16 in
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

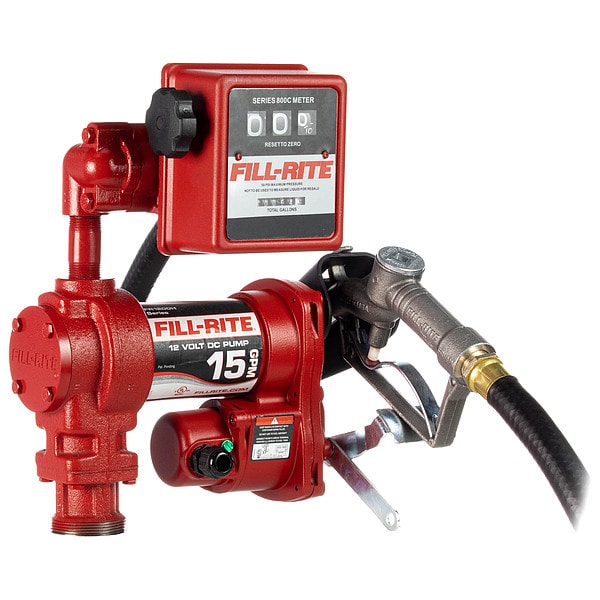

The FILL-RITE FR1211H is a 12V DC fuel transfer pump with a 15 GPM flow rate for transferring gasoline, diesel, ethanol blends up to E15, biodiesel blends up to B20, kerosene, and mineral spirits. It uses a rotary vane pump design and includes a mechanical gallon meter, 12 ft discharge hose, manual nozzle, suction tube, cable, and installation components. The pump is built with a cast iron housing and mounts to a 2 in bung opening for use on tanks such as transfer tanks.

Key Features of the FILL-RITE FR1211H Fuel Transfer Pump:

  • 12V DC Power: Designed for 12V DC electrical systems.
  • 15 GPM Flow Rate: Delivers up to 15 gallons per minute for fuel transfer.
  • Rotary Vane Pump: Rotary vane design for fuel transfer applications.
  • Cast Iron Housing: Cast iron construction for the pump housing.
  • Mechanical Meter: Metered pump with a mechanical display in gallons.
  • Included Components: Comes with a discharge hose, manual nozzle, suction tube, meter, and cable.
  • Hose and Suction Tube: Includes a 3/4 in x 12 ft hose and a 40 in suction tube.
  • Connection Sizes: 1 in MNPT inlet and 1 in FNPT outlet with NPT connections.
  • Self-Priming Operation: Self-priming design and can run dry.
  • Thermal Protection: Motor includes thermal overload protection.
  • Explosion Proof Motor: Explosion proof motor enclosure.
  • Duty Cycle: Rated for 30 minutes on and 30 minutes off.
  • Mounting Style: Bung mount for tank installation.

Restrictions

Hazardous material
