MFR # DB6V-T-M226
Zoro # G1907647
UPC # -
Country of Origin United States

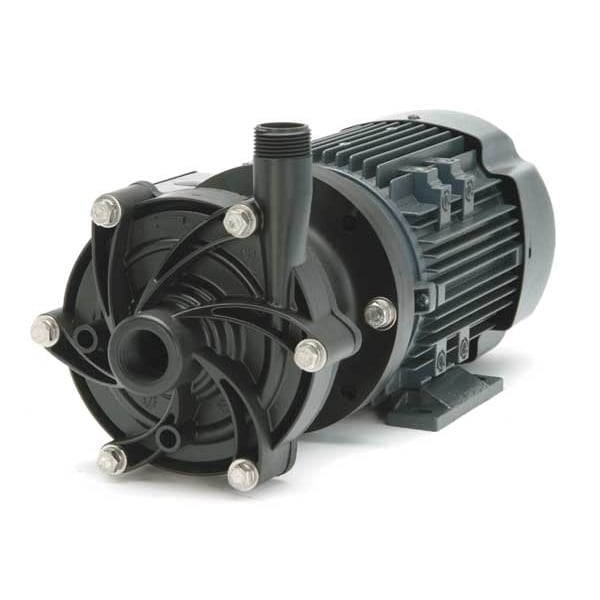

Item Magnetic Drive Pump
HP 1/2 hp
Voltage 115/208-230
Inlet 1 in FNPT
Outlet 1 in MNPT
Max. Head 33 ft
Operating Pressure 14.2 psi
Housing Material PVDF
GPM of Water @ 6 Ft. of Head 39 gpm
Bearing Type Radial, Thrust
GPM of Water @ 9 Ft. of Head 37 gpm
Motor Enclosure Totally Enclosed Fan Cooled
Design Centrifugal
Motor Type Induction
GPM of Water @ 15 Ft. of Head 34 gpm
Mounting Horizontal
Max. Specific Gravity 1.6
Full Load Amps 7.6/3.80-3.80 A
Series DB6
Application Acids, DI Water, Plating Solutions, Sodium Hypochlorite
GPM of Water @ 3 Ft. of Head 39 gpm
Max. Viscosity 100 cps
Gasket Material FKM
Impeller Material PVDF
GPM of Water @ 18 Ft. of Head 31 gpm
GPM of Water @ 24 Ft. of Head 23 gpm
Flow Rate @ 9 ft of Head (Maximum) 37 gpm
Flow Rate @ 15 ft of Head (Maximum) 34 gpm
Flow Rate @ 18 ft of Head (Maximum) 31 gpm
Operating Pressure (Maximum) 14.2 psi
Flow Rate @ 6 ft of Head (Maximum) 39 gpm
Nameplate Voltage 115/208-230V AC
Intake Pipe Type FNPT
Viscosity (Maximum) 150 cps
Flow Rate @ 24 ft of Head (Maximum) 23 gpm
Priming Manual
Horsepower (Maximum) 1/2 hp
Feet of Head (Maximum) 32 ft
Flow Rate @ 3 ft of Head (Maximum) 39 gpm
Motor Speed (Maximum) 3,450 RPM
Motor Mounting Type Horizontal
Specific Gravity (Maximum) 1.8
Phase Single Chemical Compatibility
See full list of Chemical Compatibility Acetic Acid 80%,Ammonium Hydroxide,Antifreeze,Transmission Fluid,Calcium Chloride,Acetic Acid 20%,Chromic Acid 10%,Citric Acid 50%,Deionized Water,Ethylene Glycol,Fertilizer,Water,Fungicide,Herbicide,Hydrogen Peroxide up to 50%,Nitric Acid,Phosphoric Acid 50%,Saltwater,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hypochlorite 12.5%,Sulfuric Acid 1% to 98%
Discharge Pipe Type MNPT
Full Load Current 7/3.87-3.5A
Media Temperature (Maximum) 220 Degrees F
Mounting Orientation Horizontal
Case Pressure - Maximum 80 psi
Flow Rate (Maximum) 39 gpm
Drive Coupling Type Magnetic Coupling
Pump Mounting Style Base-Mounted, Foot-Mounted
Discharge Rotation Increments 0 Degrees
Shaft Seal Type Sealless
Media Temperature - Maximum 220 Degrees F
Pump Drive Configuration Close-Coupled
NPSHr 8 ft
Best Efficiency Head 25 ft
Ambient Temperature - Minimum -20 Degrees F
Hazardous Location Class Not Rated
Number of Stages 1
Best Efficiency Flow 22 gpm
Pump Design End Suction
Pumping Application Chemical Transfer, Liquid Transfer
Ambient Temperature - Maximum 220 Degrees F
Media Temperature - Minimum 35 Degrees F
Motor Design Capacitor-Start/Run
Shut Off Pressure - Maximum 13.8 psi
