Shop FINISH THOMPSON

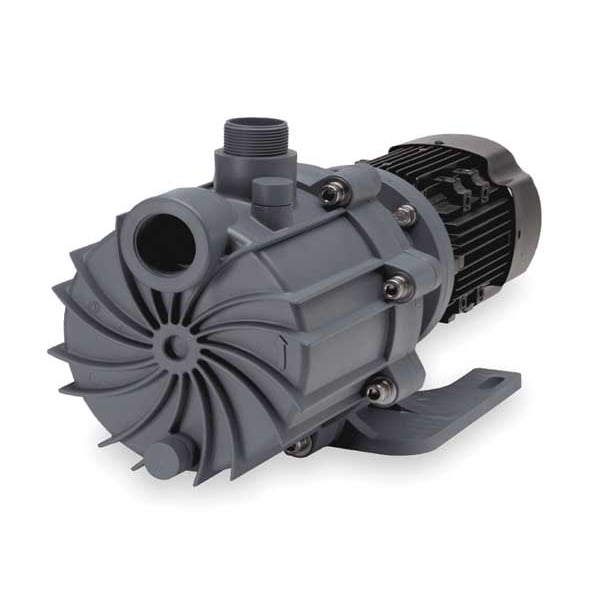

3 HP PVDF Magnetic Drive Pump 208-230/460V 1-1/2" FNPT

  • Mfr # SP15V-M209

  • Zoro # G2004432

product price:  $5,512.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Voltage
208-230/460
Inlet
1-1/2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
90 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SP15V-M209
Zoro #
G2004432
UPC #
-
Country of Origin
United States

Dimensions

Length
24 39/64 in
Width
9 23/32 in
Height
11 1/8 in
Manufacturers Warranty Length
5 yr
Overall Length
24.6 in
Overall Height
11.1 in
Discharge Pipe Size
1 1/2 in
Overall Width
9.7 in
Intake Pipe Size
1 1/2 in
Discharge Diameter
1 1/2 in
Impeller Diameter
5 13/100 in
Inlet Diameter
1 1/2 in

Details

Item
Magnetic Drive Pump
HP
3 hp
Voltage
208-230/460
Inlet
1-1/2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
90 ft
Operating Pressure
39 psi
Housing Material
PVDF
GPM of Water @ 15 Ft. of Head
120 gpm
Motor Type
Induction
GPM of Water @ 50 Ft. of Head
105 gpm
GPM of Water @ 3 Ft. of Head
120 gpm
GPM of Water @ 6 Ft. of Head
120 gpm
Mounting
Horizontal
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 24 Ft. of Head
120 gpm
Gasket Material
FKM
Application
Highly Corrosive Chemicals
Full Load Amps
8.00-7.60/3.80 A
Impeller Material
PVDF
Series
SP15
GPM of Water @ 9 Ft. of Head
120 gpm
Design
Centrifugal
Max. Viscosity
50 CPS
Max. Specific Gravity
1.2
Bearing Type
Radial, Thrust
GPM of Water @ 18 Ft. of Head
120 gpm
GPM of Water @ 40 Ft. of Head
110 gpm
Flow Rate @ 50 ft of Head (Maximum)
105 gpm
Motor Speed (Maximum)
3,450 RPM
Phase
Three
Viscosity (Maximum)
50 cps
Discharge Pipe Type
MNPT
Flow Rate @ 18 ft of Head (Maximum)
120 gpm
Motor Mounting Type
Horizontal
Horsepower (Maximum)
3 hp
Flow Rate @ 6 ft of Head (Maximum)
120 gpm
Flow Rate @ 40 ft of Head (Maximum)
110 gpm
Operating Pressure (Maximum)
39 psi
Intake Pipe Type
FNPT
Flow Rate @ 15 ft of Head (Maximum)
120 gpm
Flow Rate @ 24 ft of Head (Maximum)
120 gpm
Flow Rate @ 9 ft of Head (Maximum)
120 gpm
Feet of Head (Maximum)
90 ft
Specific Gravity (Maximum)
1.8
Flow Rate @ 3 ft of Head (Maximum)
120 gpm
Mounting Orientation
Horizontal
Chemical Compatibility
Priming
Self-Priming
Nameplate Voltage
208-230/460V AC
Media Temperature (Maximum)
220 Degrees F
Full Load Current
8.2-7.34/3.67A
Pumping Application
Chemical Transfer, Liquid Transfer
Drive Coupling Type
Magnetic Coupling
Hazardous Location Class
Class I Division 2
Shaft Seal Type
Sealless
Media Temperature - Minimum
35 Degrees F
NPSHr
12 ft
Flow Rate (Maximum)
120 gpm
Ambient Temperature - Minimum
-20 Degrees F
Best Efficiency Flow
70 gpm
Pump Mounting Style
Base-Mounted, Foot-Mounted
Shut Off Pressure - Maximum
38.9 psi
Motor Design
Three-Phase
Discharge Rotation Increments
0 Degrees
Ambient Temperature - Maximum
220 Degrees F
Pump Design
End Suction
Best Efficiency Head
76 ft
Number of Stages
1
Case Pressure - Maximum
90 psi
Media Temperature - Maximum
220 Degrees F
Pump Drive Configuration
Close-Coupled

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 90 ft, Flow Rate @ 3 ft of Head (Maximum) 120 gpm, Flow Rate @ 6 ft of Head (Maximum) 120 gpm, Flow Rate @ 9 ft of Head (Maximum) 120 gpm, Flow Rate @ 15 ft of Head (Maximum) 120 gpm, Flow Rate @ 24 ft of Head (Maximum) 120 gpm, Flow Rate @ 50 ft of Head (Maximum) 105 gpm, Horsepower (Maximum) 3 hp, Intake Pipe Size 1 1/2 in, Intake Pipe Type FNPT

Restrictions

Hazardous material
